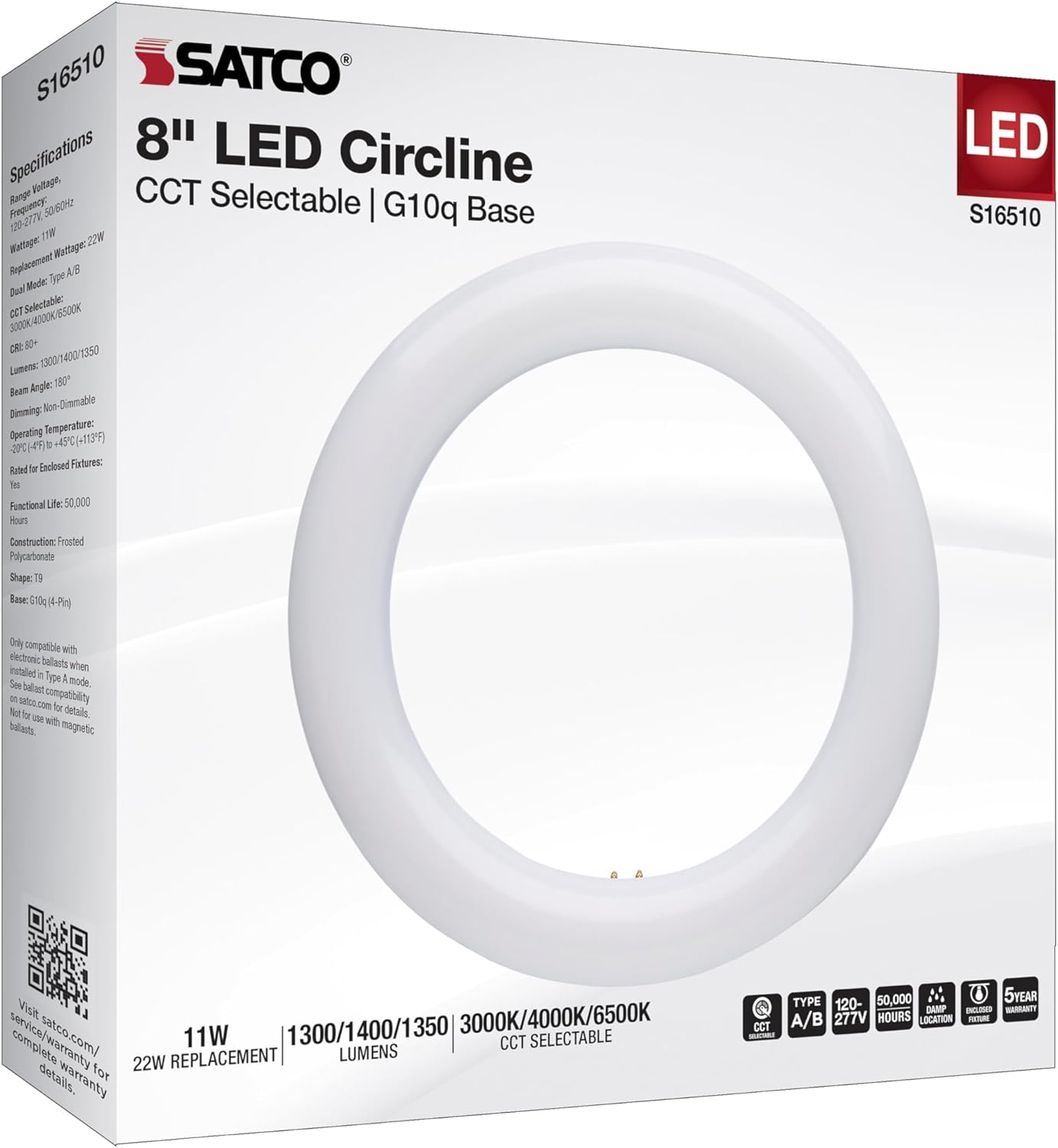

Satco S16510 11W LED Circline T9 Lamp, CCT Selectable 3000K-6500K Soft White to Daylight, 1300-1400 Lumens, Frost, G10q 4-Pin Base, 120-277V, Damp Location, 50000 Hours, Type A/B (2 Pack)
Product details
| Management number | 213609685 | Release Date | 2026/04/12 | List Price | $24.00 | Model Number | 213609685 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Satco S16510 is an 11W LED circline T9 lamp with CCT selectable settings for 3000K, 4000K, or 6500K and a G10q (4-pin) base for compatible circline fixtures. It operates on 120-277V and supports Type A/B applications, using either a required electronic ballast in Type A mode or ballast bypass wiring in Type B mode, based on the fixture and installation plan. Light output ranges from 1300 to 1400 lumens depending on selected CCT, with a 180 degree beam angle to support practical distribution in circline applications. The lamp uses a frosted lens finish with polycarbonate construction and is rated for enclosed fixtures and damp locations for broader indoor retrofit coverage. Rated life is 50000 hours with built-in surge protection of 2.5KV and 25% total harmonic distortion. Compliance and safety support includes FCC compliance, RoHS compliance, and cETLus classified safety listing. Installation note: not for use in vapor tight fixtures, and Type A mode is only compatible with electronic ballasts; see ballast compatibility details.
- Upgrade circline fixtures with a Satco LED circline T9 lamp that uses 11W while delivering 1300-1400 lumens, depending on selected CCT. Designed for 120-277V operation with a G10q 4-pin base, it supports practical retrofits while maintaining useful brightness for everyday indoor lighting.
- Choose the light appearance at installation using CCT selectable options of 3000K, 4000K, or 6500K, covering soft white through daylight in one lamp. This helps simplify inventory by reducing the need to stock multiple fixed-CCT versions for similar fixtures across a facility.
- Support flexible retrofit planning with Type A/B capability, allowing electronic ballast operation in Type A mode or ballast bypass wiring in Type B mode based on site requirements. Type A mode is for electronic ballasts only, and the ballast compatibility list helps avoid misapplication during upgrades.
- Get comfortable, controlled illumination with a 180 degree beam angle and a frosted lens finish that helps soften glare while maintaining useful output. Polycarbonate construction supports durability, and the lamp is rated for enclosed fixtures to help expand placement options in common indoor housing styles.
- Designed for long service intervals with 50000 rated hours, built-in 2.5KV surge protection, and 25% total harmonic distortion for stable operation. The lamp is damp location rated and supports specification needs with FCC compliance, RoHS compliance, and a cETLus classified safety listing.
| Voltage | 120 Volts |
|---|---|
| Wattage | 11 watts |
| Brand Name | Satco |
| Brightness | 1400 Lumen |
| Light Type | LED |
| Unit Count | 2.0 Count |
| Manufacturer | Satco |
| Power Source | AC |
| Material Type | Glass |
| Item Type Name | LED BULB |
| Bulb Shape Size | T |
| Number of Items | 2 |
| Package Quantity | 2 |
| Color Temperature | 3000 Kelvin |
| Light Source Type | LED |
| Additional Features | Meet common compliance and documentation needs with published specifications and instructions for field reference. The lamp includes FCC compliance, RoHS compliance, and cETLus classified safety listing, helping support specification-driven installs and procurement requirements for commercial maintenance programs., Operate reliably across a wide temperature range of -20C (-4F) to +45C (+113F) for indoor environments, with damp location rating and enclosed fixture suitability when used appropriately. Installation notes specify it is not for use in vapor tight fixtures to help prevent incorrect applications., Plan wiring decisions with Type A/B flexibility that supports electronic ballast installations in Type A mode or ballast bypass in Type B mode depending on fixture condition. Using the ballast compatibility list for Type A mode helps prevent callbacks and supports consistent results across retrofit projects., Reduce relamping frequency by moving to an LED circline lamp rated for 50000 hours, helping lower maintenance effort in fixtures that are inconvenient to service. This is a practical option for utility and general lighting spaces where consistent output and fewer interruptions matter., Support phased upgrades by standardizing on one CCT selectable lamp that can be set to different color temperatures at install. This helps align with existing lighting conditions in adjacent rooms, updated preferences, or revised standards without changing the SKU or stocking multiple variants. |
| Included Components | Bulb included |
| Color Rendering Index | 90.00 |
| Specific Uses For Product | General purpose |
