Sewage Level Sensor, 0-190 ohms 12"(300mm) Marine Holding Tank Level Sensor, Stainless Steel Fuel Water Level Sending Unit for RVs, Marine Holding Tanks, Boats, Vehicles, Generators
Product details
| Management number | 212603595 | Release Date | 2026/04/06 | List Price | $18.00 | Model Number | 212603595 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Xenloce Liquid Level Sensors, Water Sensors, Sewage Level Gauge Sensor 150/200/250/300/350mm ，Fit for Marine Boat Car RV 0-190 Ohm 240-33ohm(250mm-190ohm)，Simple structure, accurate measurement, long service life, good shock resistance and corrosion resistance, stable output signal, universal style, suitable for fuel tanks, water tanks and any liquids without impurities, suitable for sewage tank, fuel tanks and water tanks, used in RVs, marine holding tanks, boats, vehicles，generators, etc.Sewage Level Sensor Specifications:Protection Rank: IP67Product function: level measurement in Marine Holding Tanks,Fuel, Water, Chemical Agent Liquid Tanks.Operating temperatures:-40°F ~ +185°F (-40℃ ~ +85℃).Sensor Length :6"-14" (150mm-350mm)Output signal: 0-190 phm, 240-33 ohmMaterial:Body: Stainless Steel.Cable: PVC.Float: NBR.Screw Size: M5 x 0.8 Length (16mm) .Hole Size: 0.20" (5mm).Mounting Methods: Standard SAE 5 hole pattern.Package:Package comes with 1 x Fuel Sensor, 1 x Gasket, 5 x Screws and 1 x instructions. Red-brown wire for positive and blue for negative.Feature:Widely used：suitable for various fields such as automobiles, ships, speedboats, engines, generator sets, construction machinery, agricultural machinery, and modified vehicles.Easy Assembly：The product has a simple structure, accurate measurement.Stable quality：long service life, good seismic and corrosion resistance, and stable output signal.Flexible application：Default sensor resistance output 0-190 Ω, 240-33 Ω，sensor length ranges from 6"-14" (150mm to 350mm).High security：special design can make it work in vile condition for long term，working temperature ranging from -40 to 85 degrees.
- 【Wide Application】 Perfect for diesel, gasoline, water, waste Water. Works suitable for RVs, marine holding tanks, Vehicles, Boats, trucks, and Generators.
- 【Durable and Long-lasting】 The Sewage Level Sensor is made of high quality stainless steel which is durable and not easy to rust. Simple and strong structure, anti-vibration, anti-explosion.Special design ensuring its long-term operation even in a sewage tank, it can maintain its performance in various environments.
- 【Multiple Sizes】 Length range of fuel sender to choose:150mm, 200mm, 250mm, 300mm, 350mm.Various sizes can be selected to match your tank depth.
- 【Easy to Install】 SAE 5-bolt design and included hardware (screws, gasket, manual) make set up simple.

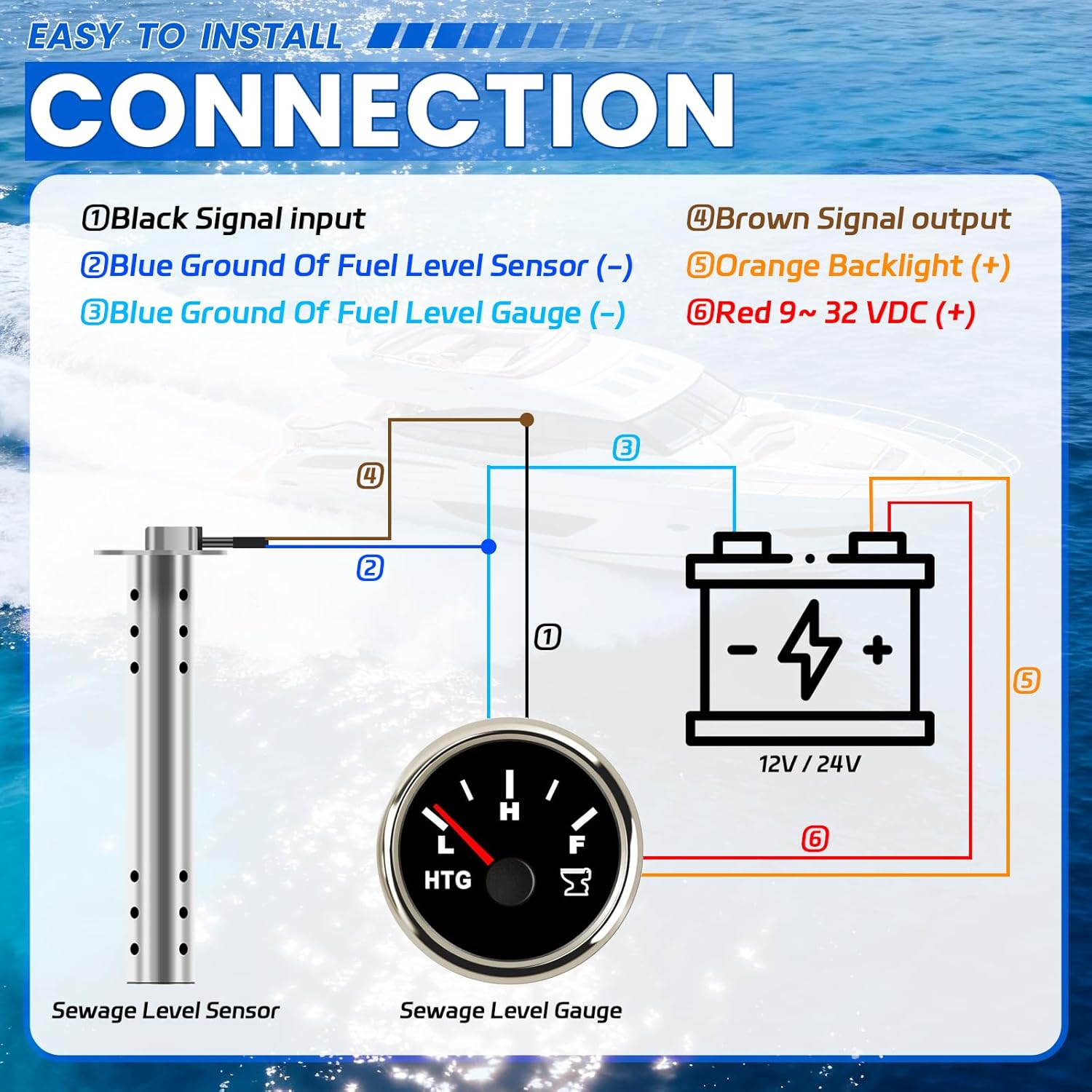

- Note: 1 x Sewage Level Sensor, 1 x Gasket, 5 x Screws and 1 x instructions. Red-brown wire for positive and blue for negative.
| Model | SewageLevelSensor-01 |
|---|---|
| Brand Name | Xenloce |
| Style Name | 0-190 ohms Sender |
| Unit Count | 1.0 Count |
| Manufacturer | Xenloce |
| Material Type | NBR, Stainless Steel |
| Mounting Type | SAE5 Through Hole Mount |
| Current Rating | 0.5 Amps |
| Item Dimensions | 14 x 2.8 x 2.8 inches |
| Included Components | 1 x Sewage Level Sensor, 1 x Gasket, 5 x Screws and 1 x instructions |
| Upper Temperature Rating | 185 Degrees Fahrenheit |
