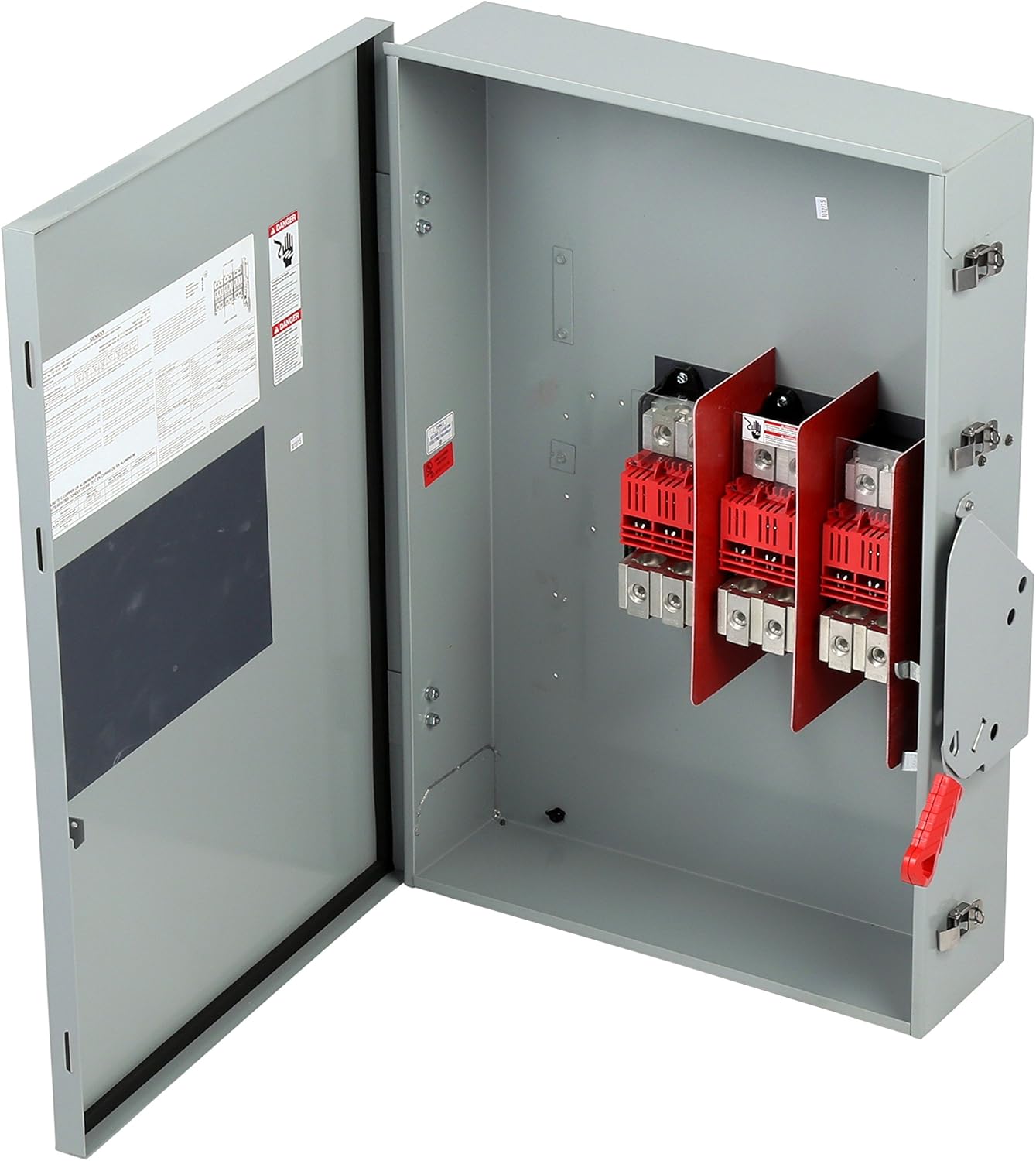

Siemens HNF365JA Heavy Duty SAFETY Switch, Non-Fusible, 3 Pole, 600 Volt, 400 Amp, Type 12
Product details
| Management number | 213662362 | Release Date | 2026/04/12 | List Price | $800.71 | Model Number | 213662362 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Siemens safety switches are UL98 and csa certified, hp rated, and approved for service entrance applications. Enclosures are constructed with a compact one piece lightweight construction that enables easier installation even in tight spaces. All switches provide multiple break current paths for excellent load endurance, reducing heat and increasing switching speed. Extended endurance cycles provide three times the UL requirement. Lugs are lay-in style with removable top for easier Wiring. The enclosure incorporates an upward flange to prevent water, ice, and snow access from the top of the enclosure and generous wire gutter space that meets or exceeds NEC wire bend space requirements. Reductions in seams and large overlaps improve sealing characteristics. An extra ground lug on the neutral eliminates the need for installers to add additional lug when required for local Codes.
- Quick-make and break switching action
- Cam utilize either one large or two small wires per lug
- Tangential knock outs for wall flush Conduit mounting
- Visible blade design
| UPC | 887621872625 |
|---|---|
| Color | 45.32 |
| Model | HNF365JA |
| Brand Name | SIEMENS |
| Unit Count | 1.0 Count |
| Item Weight | 75 Pounds |
| Circuit Type | 3-way |
| Manufacturer | Siemens -HI |
| Mounting Type | Ceiling Mount,Wall Mount |
| Connector Type | Flange |
| Current Rating | 400 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 6.97 x 22.4 x 45.32 inches |
| Number of Items | 1 |
| Operating Voltage | 600 Volts |
| Specification Met | CSA |
| Included Components | Safety Switch |
| Number of Positions | 3 |
| Connectivity Protocol | X-10 |
| Global Trade Identification Number | 00887621872625 |
