SMA cable crimping tool and 10pcs SMA male to female connectors for RG174 RG316 wifi antenna extension cable

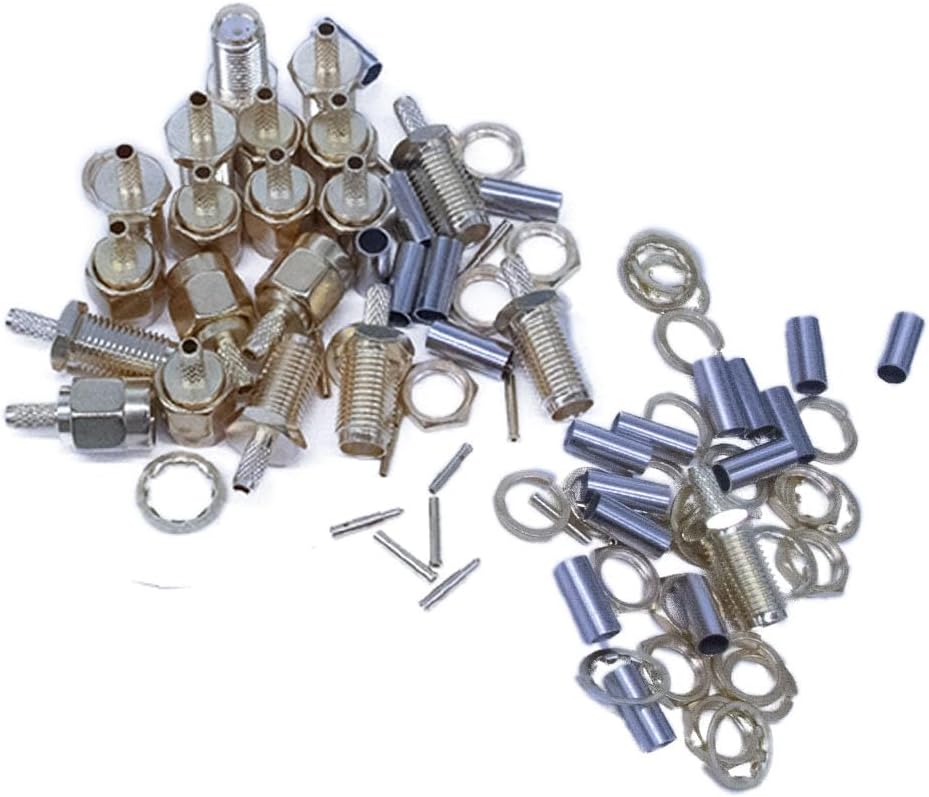

SMA crimping plier: 1. Body material: carbon steel 2. Ergonomically shaped non-slip handles 3. Colour: blue. 4. Crimping specifications: 0.128" (3.25mm) 0.138" (3.5mm) 0.178" (4.5mm) 0.068" (1.72mm) 0.04" (1mm) SMA male + female connectors Impedance: 50 ohms Connector Housing style: straight Case material: brass Inner conductor material: brass Contact termination: crimp or solder Housing color:gold Body termination:crimp Cable type: RG174 RG316 RG188 LMR coaxial cable Package: 10 x SMA male（plug) connectors. 10 x SMA female (jack) connectors. 1 x Crimping plier.

• 1. This SMA crimping plier set includes a professinal crimping plier,10 pcs SMA male and female crimp on connectors for mounting and crimping plugs with antenna cable.
• 2. Laminated steel construction of the jaw provide robust crimps and for years of reliable service.crimps SMA BNC/TNC 3-piece coaxial connectors with size 0.04" (1mm), 0.068" (1.72mm), 0.178" (4.5mm), 0.138" (3.5mm), 0.128" (3.25mm).
• 3. 10 sets of SMA male and female crimp-on connectors have an impedance of 50 ohms and compatible with RG174, RG316, RG188, and LMR cables. both body and contact termination can be done through crimping.
• 4. With the SMA crimping tool kit, you can create SMA extension cables to connect antennas, routers and amplifiers to SMA devices using the appropriate antenna connectors.

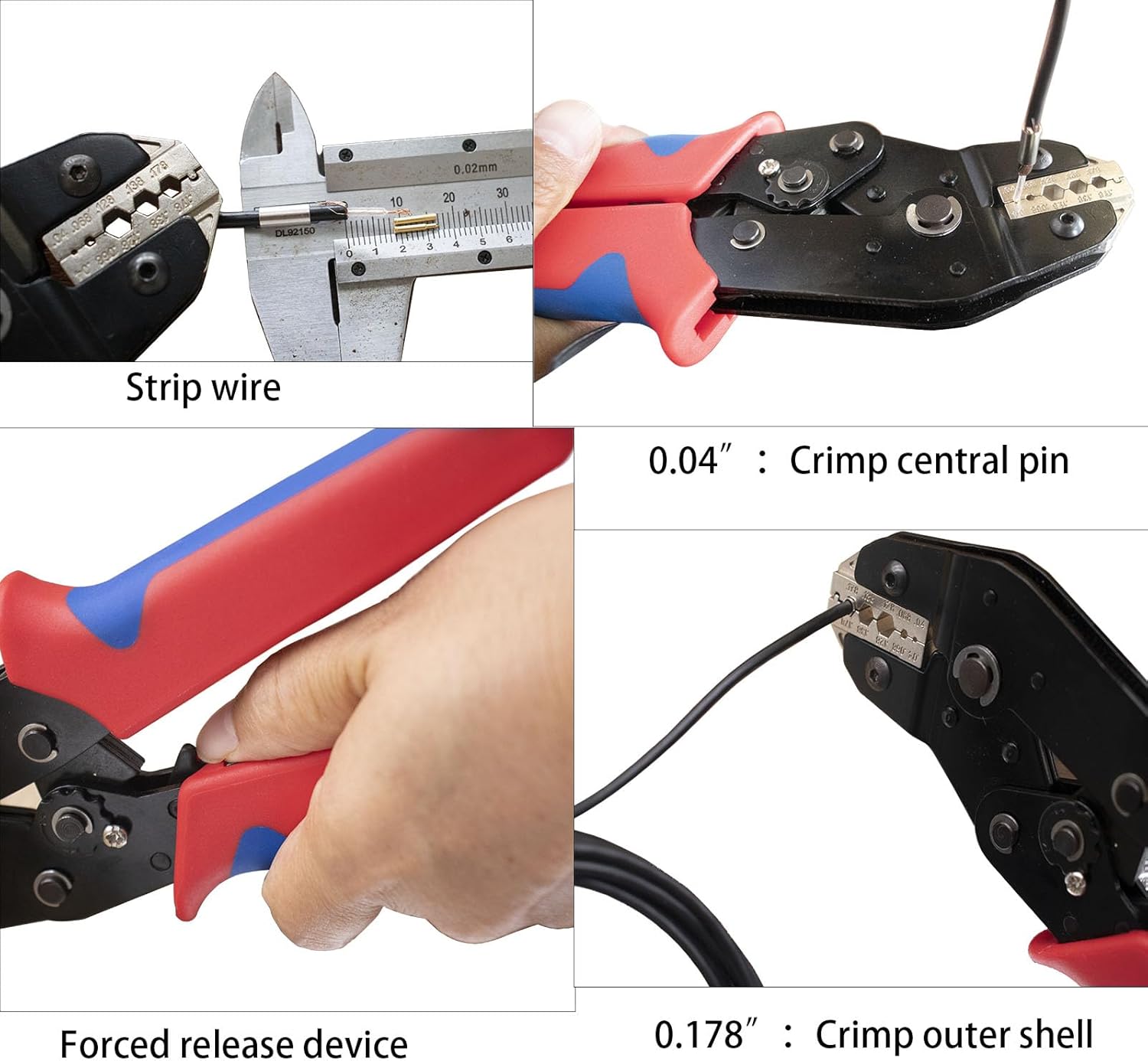

• 5. To assemble, remove about 12mm of insulation from the cable and expose a 4mm core wire; insert the pin into the exposed core wire and crimp it together; Attach the SMA connector to the cable and crimp the outer case.
