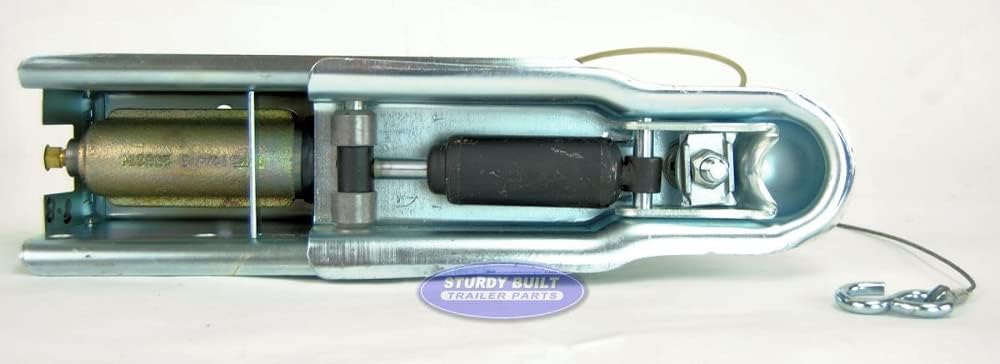

Sturdy Built Titan Model 60 Drum Trailer Surge Brake Actuator Coupler 2 inch Ball, 7,000lb Lever Lock

As a perfect complement to your Titan Hydraulic Drum Brake system, we offer Titan Brand Surge Actuators as the chief authority in the business. This is a Titan Model 60 ZX7000 Drum that is rated to 7,000lb of towing capacity and 700lbs of tongue weight that uses a 1 7/8" or 2" towing ball. When considering carrying capacity and the usage of this model, consider you current carrying capacity. Typically this surge actuator outfits either a single axle or tandem axle trailer with one or two 3,500lb capacity trailer axles. This would mean that the maximum capacity of the trailer itself would be 7,000lbs. As far as outfitting this item to your trailer, typically you will be using (2) 1/2 inch Diameter by 4 1/2 inch Long Stainless Steel Bolts to mount to your trailers 3 inch wide tongue. You must have a straight, 3 inch wide tongue to mount this Model 60 actuator. It is not uncommon to need to drill new holes, as different manufacturers use different bolt spaces when the tongue actuators are produced. A Titan Surge Brake Actuator works by using the force of the towing vehicle stopping to engage the master cylinder, applying pressure on the brake fluid to flow through the brake lines. This particular listing is for the Titan Model 60 ZX7000 Drum Brake surge coupler. When installing a new drum brake system on single or tandem axle drum brakes it is not uncommon to spend a good amount of time priming the lines, and using a good amount of brake fluid. It is important to begin at the furthest away Backing Plate when trying to get the fluid through the lines.This is Titans Part #43329007K and Includes a Factory Warranty, Installation and Service Manual
