Surpass Hobyy 3650 4350kv Brushless Motor with Waterproof Smart 60A ESC for 1/10 Remote Control Car

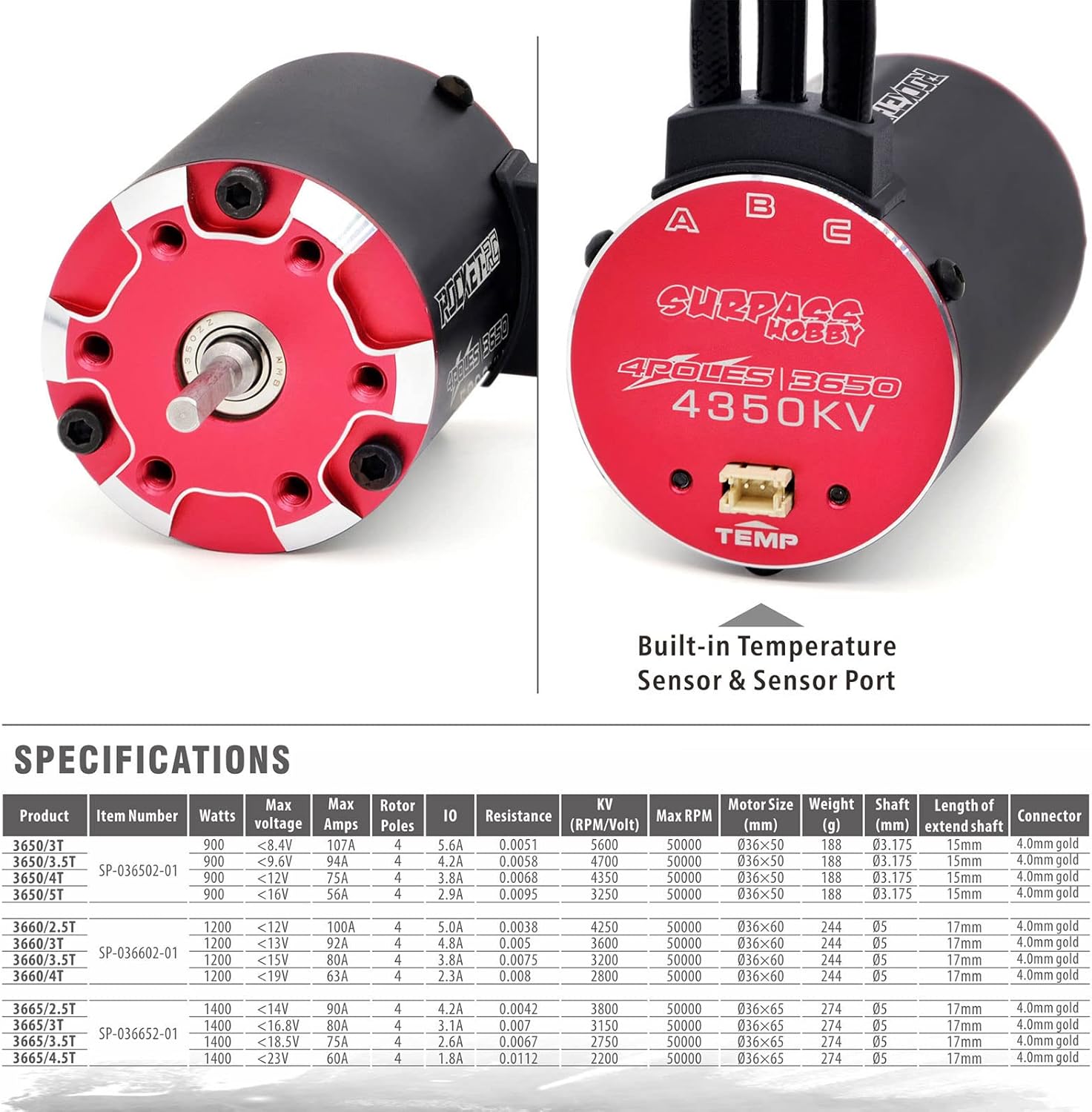

Specification:Item Type: 3650 4350KV Brushless MotorMaterial: Aluminum Alloy + Copper + PlasticColor: BlackMotorModel: 3650KV (RPM/Volt): 4350KVWattage: 900WMaximum Voltage: 12VMaximum Current: 75AMaximum Speed: 50000No Load Current: 3.8ANumber of Motor Poles: 4Internal Resistance (Ω): 0.0068Motor Length: Approx. 50mm / 2.0in (Without Shaft)Motor Diameter: Approx. 36mm / 1.4inShaft Diameter: Approx. 3.175mm / 0.13inShaft Length: Approx. 15mm / 0.6inGold Plated Plug: Approx. 4.0mm / 0.16in60A ESC:Continuous Current: 60AInstantaneous Current: 360AMotor Type: Non Inductive Brushless MotorInternal Resistance: 0.0007ohmBattery: on road RC Car: 2s Lipo or 6cells NiMH off -road/buggy/Monster: for this Kv, pls kindly use 80A or above 80A ESC BEC Output: 5.8V/5V (Switching Mode)Product Size: Approx. 50x35x34mm / 2.0x1.38x1.34inPlug Type: XT60 to T Plug ConnectorApplication: for 1/10 Remote Control Car (eg: for Tamiya / for Traxxas)Package List:1 x 3650 Brushless Motor1 x 60A ESC1 x XT60 to T Plug Connector4 x Screw2 x ManualNote:1. Due to manual measurement, please allow an error of 13mm. Thanks!2. The monitor calibration is inconsistent, the color of the item shown in the photo may be slightly different from the actual object3. Please unload the cooling fan water before using this ESC; clean and wipe dry as soon as possible after use to prevent the connector from rusting.

• Stability and Reliability: Adopt lnfineon mosfet chip,Intelligent freewheeling technology, greatly improved performance The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.
• Profession:Powerful built-in BEC The ESC has a built-in BEC with a continuous current of 6A. The output voltages are switchable between 6V, 7.4V 8.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.
• Capacitor Thermal Protection: High quality ruby capacitors,capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.
• High protection Functions: all-weather operation The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

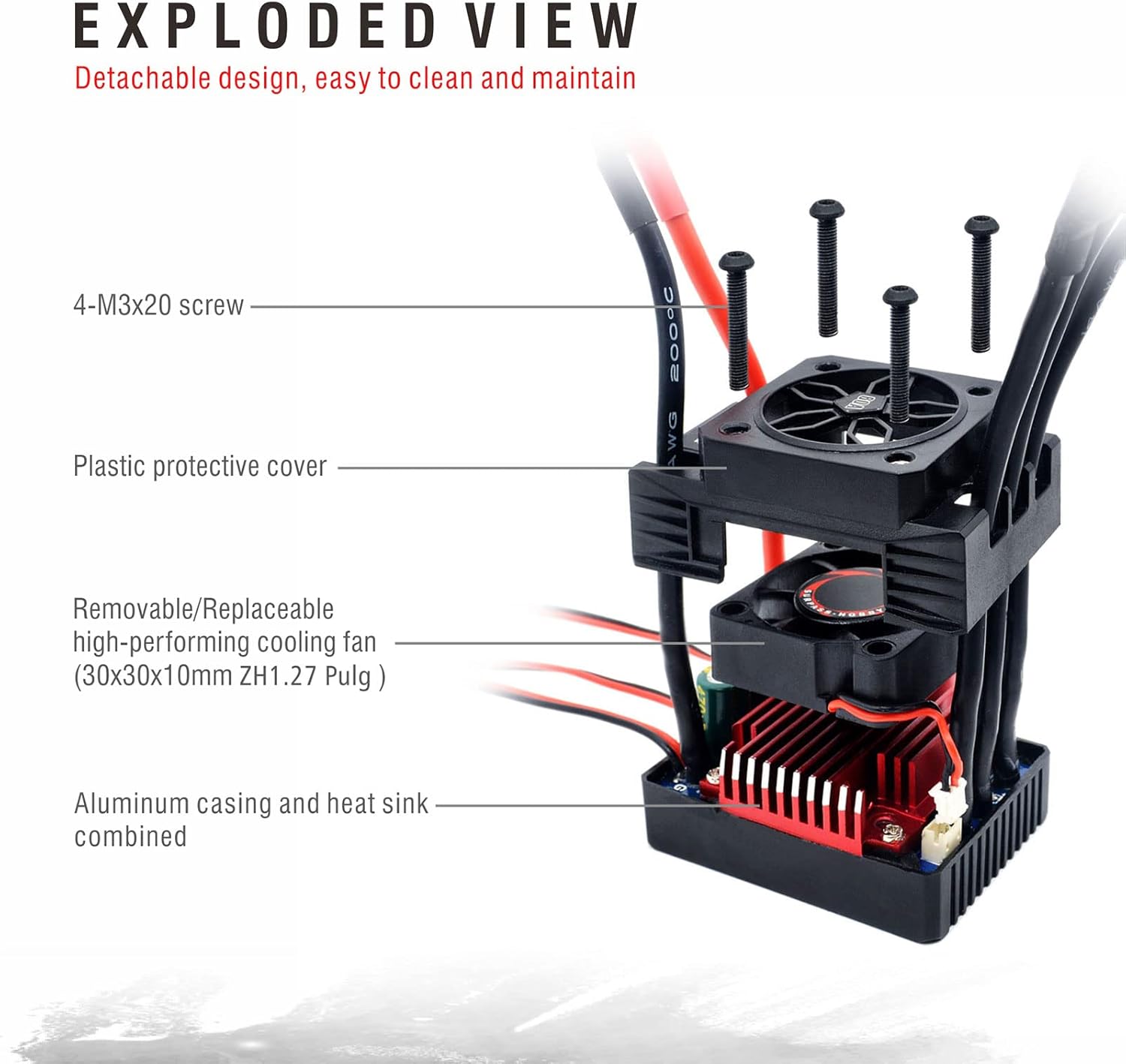

• Efficent Cooling System: Adopt lnfineon mosfet chip,the integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.
