SZW26/LW26-160 D101.1 D202.2 D303.3 D404.4 160A 240V Position On-Off-On Phase Universal Changeover Cam Switch 1Pcs(160A D404.4)
Product details
| Management number | 211062249 | Release Date | 2026/04/04 | List Price | $58.07 | Model Number | 211062249 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Tactile SwitchesSZW26/LW26-160 D101.1 D202.2 D303.3 D404.4 160A 240V Position On-Off-On Phase Universal Changeover Cam Switch 1Pcs==========Current : 160AMaterial : PlasticSwitch Type : Universal SwitchModel Number : SZW26-160/D101.1/D202.2/D303.3/D404.4Features : 1-4 phaseItem Type : SWITCHESRated working voltage(Ue) : AC240V AC440VRated insulation voltage(Ui) : 660VRated impulse withstand voltage(Uimp) : 4kVConventional heating current(Ith) : 160AUse category 1 : AC-23ARated working current(Ie) 1 : 135AUse category 2 : AC-3Rated working current(Ie) 2 : 95AUse category 3 : AC-4Rated working current(Ie) 3 : 55ARated short-time withstand current(Icw) : 1620A/1sRated short-circuit making capacity(Icm) : 2284A
- Tactile Switches

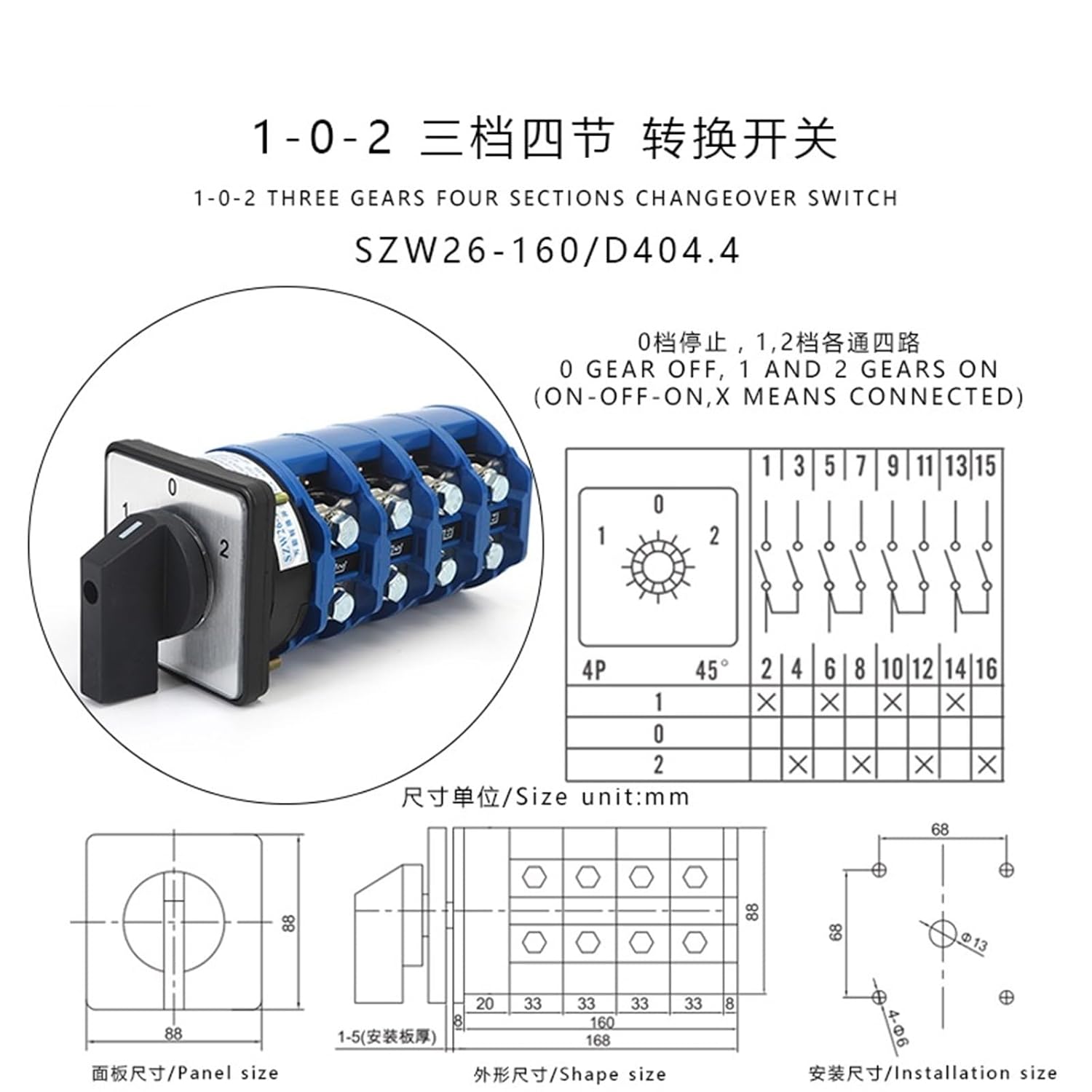

- 【See the second picture of the variant for detailed parameters】
- 【See the second picture of the variant for detailed parameters】
| Color | 160A D404.4 |
|---|---|
| Terminal | Blade |
| Brand Name | BYEFALAW |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | BYEFALAW |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
