UP15-29SU/LC Hot Water Circulator Pump w/Line Cord 87W 115V 1/8 HP 60HZ 1-1/4" Union NPSM Compatible with Grund fos for Hydronic Domestic Systems Replace UP15-29SU LC 59896776
Product details
| Management number | 210145234 | Release Date | 2026/04/02 | List Price | $54.80 | Model Number | 210145234 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

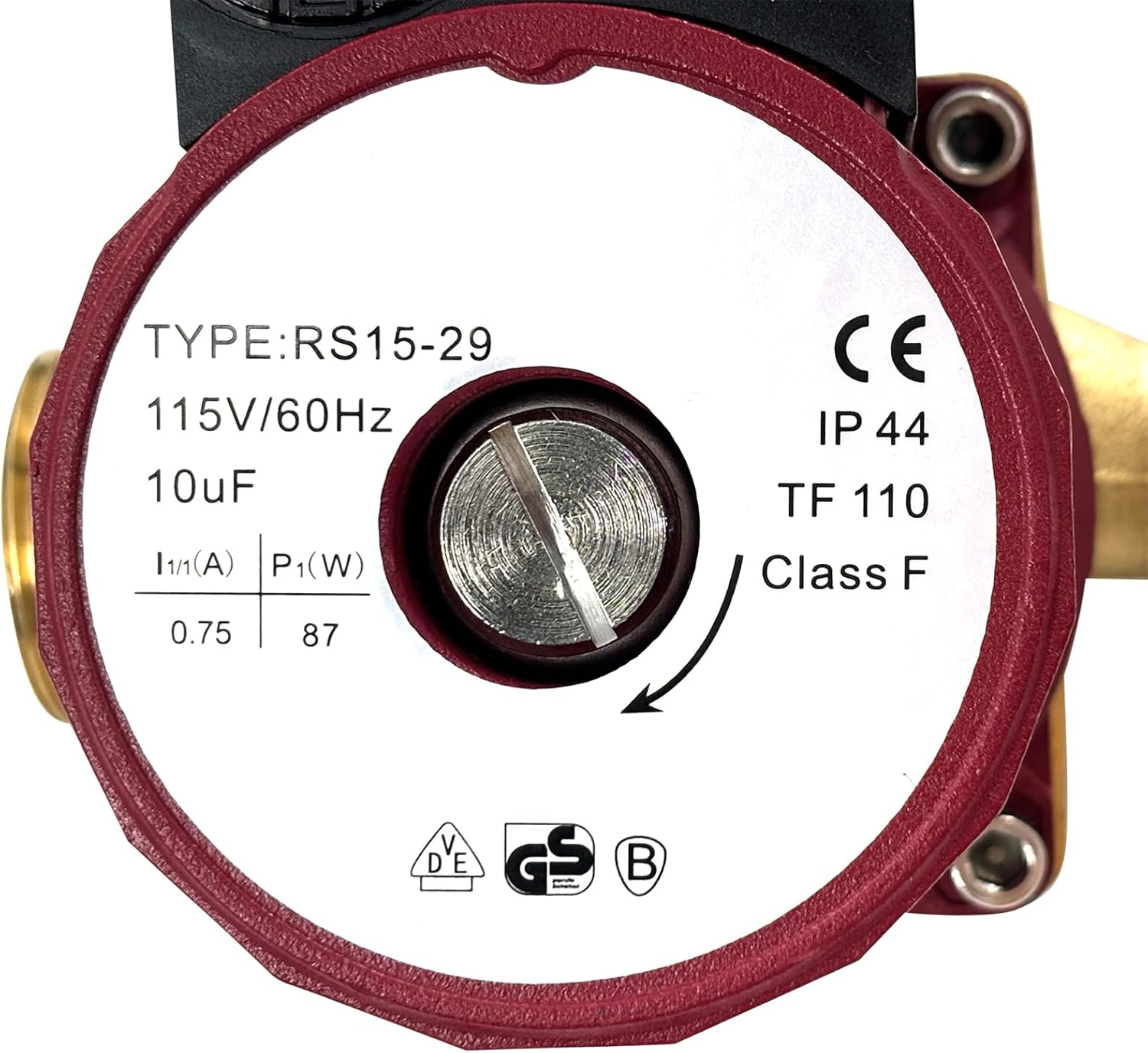

Circulator Pump Specification: Rated Power : 1/8 HP; Number of poles: 2 Max; Supply Voltage: 115V; power input: 87W;Main frequency: 60 HZ; Rated voltage: 1 x 115V; Current in speed 3: 0.42-0.75A; Capacitor size - run: 10 µF/180V; Insulation class (IEC 85)Connection: 1 1/4" NPSM connection; Port-to-port length: 5.87" port-to-port length; Maximum operating pressure: 145 PSI; Maximum ambient temperature: 104°F; Ambient max at 176°F; Pressure stage: 10 Port-to-port; Liquid temperature range: 36°F to 230°F
- OE Number: Non Submersible Circulation Pump Replace 59896776 UP15-29SU/LC UP15-29SU LC UP15-29SULC
- 59896776 Circulator Pump Specification: Rated Power : 1/8 HP; Number of poles: 2 Max; Supply Voltage: 115V; power input: 87W; Main frequency: 60 HZ; Rated voltage: 1 x 115V; Current in speed 3: 0.42-0.75A; Capacitor size - run: 10 µF/180V; Insulation class (IEC 85)
- Water Circulator Pump Specification: Connection: 1 1/4" NPSM connection; Port-to-port length: 5.87" port-to-port length; Maximum operating pressure: 145 PSI; Maximum ambient temperature: 104°F; Ambient max at 176°F; Pressure stage: 10 Port-to-port; Liquid temperature range: 36°F to 230°F

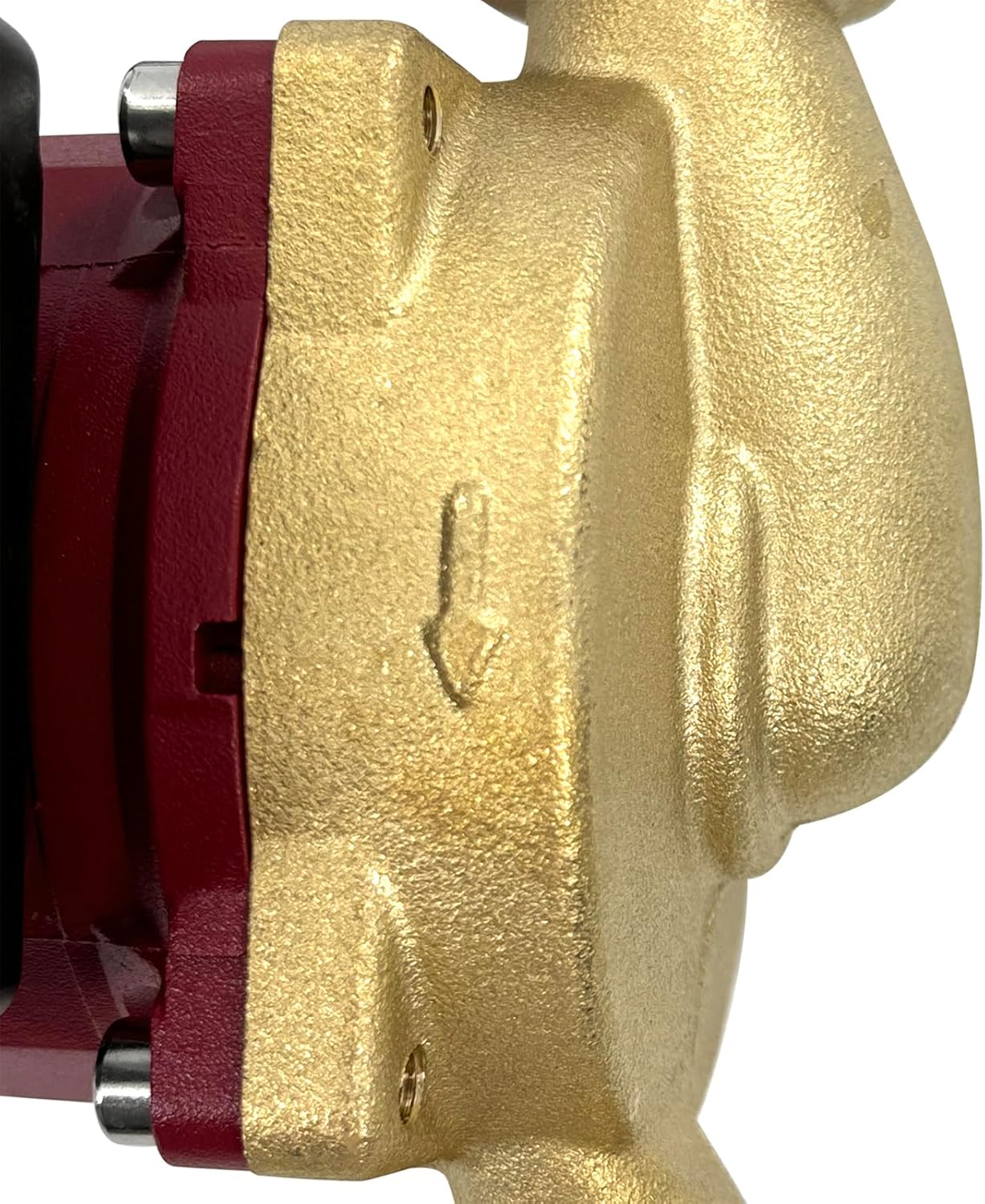

- Material: The Grund fos UP15-29SU LC Circulator pump is canned rotor type, pump and motor form an integral unit without shaft seal and with only two gaskets for sealing; Made from copper, it uses carbon axial bearings, ceramic shaft and radial bearings with a corrosion-resistant composite PES impeller
- After-Sales Service: All of this Grund fos 59896776 Circulation Pump from undergo are factory inspected before shipping. JUNHEKJ will take responsibility for the product quality issues within 12 months
| Color | Red |
|---|---|
| Voltage | 115 Volts |
| Flow Rate | 17 Gallons Per Minute |
| Brand Name | JUNHEKJ |
| Unit Count | 2 Count |
| Manufacturer | JUNHEKJ |
| Model Number | 59896776 UP15-29SU/LC UP15-29SU LC |
| Power Source | Solar Powered |
| Material Type | Cast Iron |
| Product Style | UP15-29SU/LC Hot Water Circulator Pump w/ Line Cord 87W 115V 1/8 HP 60HZ 1-1/4" Union NPSM Compatible with Grund fos for Hydronic Domestic Systems Replace UP15-29SU LC 59896776 |
| Included Components | 1*Water Circulator Pump Set |
| Manufacturer Warranty Description | 1 Year |
