USB to 3.3v 5v TTL Serial Cable 6P Header UART Converter 6 Pins 3V3 5V TTL TTL-232R-RPI for Pi 1.8m(5V Logic Levels)

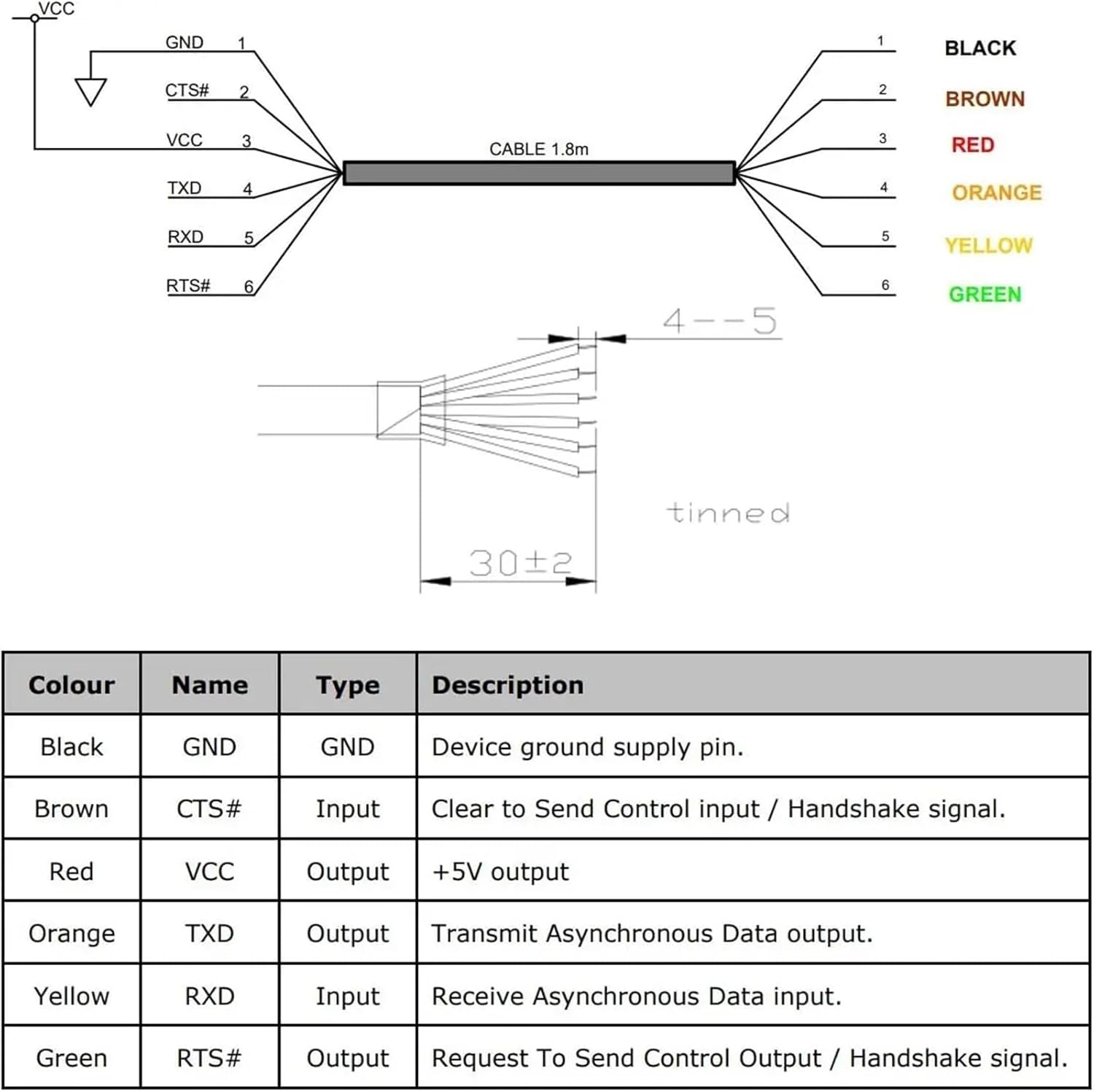

CablesUSB to 3.3V or 5V TTL 6P Header UARL CableChipset: FT232RLFully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.Length:1.8MLogic Levels:3.3V/5V optionalPinout:TXD,RXD,VCC(+5V),GND,CTS,RTSCable Info:24AWG*6C, OD5.2 Bare CopperVIRTUAL COM PORT (VCP) Drivers are available for the following Operating Systems (OS):- Windows 11,10,8.1,8,Vista,7,XP- Windows 98, 98SE, ME, 2000, - Server 2003, XP, Server 2008 and server 2012 R2- Windows XP Embedded- Windows 4.2, 5.0 and 6.0- OS 8/9, OS-X- Linux 2.4 and greater - Android(J2xx / D2xx only)Virtual COM Port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port.Please also refer to the Installation Guides documents for details on how to install the drivers.Product DescriptionTTL-232R Converter Cable provides a USB to TTL Serial interface with various end connectors.Onboard FT232RNL provides single chip USB to asynchronous serial data transfer interface.Entire USB protocol handled by the electronics in the cable USB.Connect directly to a microcontroller UART or I/O pins.5V CMOS drive outputs and 5V safe TTL inputs make the TTL-232R easy to interface to 5V MCU''s.+5V or +3.3V output allows external logic to be powered from the USB port.6-way outputs provide Tx, Rx, RTS#, CTS#, VCC, and GND (except Audio Jack which provides only TX, RX, and GND).4-way connector provides Tx, Rx, VCC and GND.3-way Audio Jack connector provides Tx, Rx, and GND..Low USB bandwidth consumption.UHCI / OHCI / EHCI host controller compatible.USB 2.0 Full Speed compatible.-40°C to +85°C operating temperature range.Cable length is 1.80m (6 feet).Typical Applications* USB to Serial TTL Level Converter* Upgrading Legacy Peripherals to USB* Interface Microcontroller UART or I/O to USB* Interface FPGA / PLD to USB* Firmware download and debug cable* USB Instrumentation PC interface* USB Industrial Control* USB Software / Hardware Encryption Dongles* "Maker" projects test cableThe FT232RNL Chip Features:1. Single chip USB to asynchronous serial data transfer interface.2. Entire USB protocol handled on the chip. No USB specific firmware programming required.3. Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.4. Fully integrated USB termination resistors.5. Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.6. Data transfer rates from 300 baud to 3 Mbaud(RS422, RS485, RS232) at TTL levels.7. 128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.8. royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.9. Unique USB FTDIChip-ID feature.10. Configurable CBUS I/O pins.11. Transmit and receive LED drive signals.12. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space /no parity13. receives and transmits buffers for high data throughput.14. and asynchronous bit bang interface options with RD# and WR# strobes.15. Device supplied pre-programmed with unique USB serial number.16. Supports bus powered, self-powered and highpower bus powered USB configurations.17. Integrated +3.3V level converter for USB I/O.18. Integrated level converter on UART and CBUS for interfacing to between +1.8V and +5V logic.19. True 5V/3.3V/2.8V/1.8V CMOS drive output and TTL input.20. Configurable I/O pin output drive strength.21. Integrated power-on-reset circuit.22. Fully integrated AVCC supply filtering - no external filtering required.23. UART signal inversion option.24. +3.3V (using external oscillator) to +5.25V (internal oscillator) Single Supply Operation.25. Low operating and USB suspend current.26. Low USB bandwidth consumption.27. UHCI/OHCI/EHCI host controller compatible.28. USB 2.0 Full Speed compatible.29. -40°C to 85°C extended operating temperature range.30. Available in compact Pb-free 28 Pin SSOP and QFN-32 packages==========Model Number : 000020Type : Serial CablePinout : TXD,RXD,VCC(+5V),GND,CTS,RTSChipset : FT232RNLColor : BlackLength : 1.8MtrLogic Levels : 3.3V/5V optional
