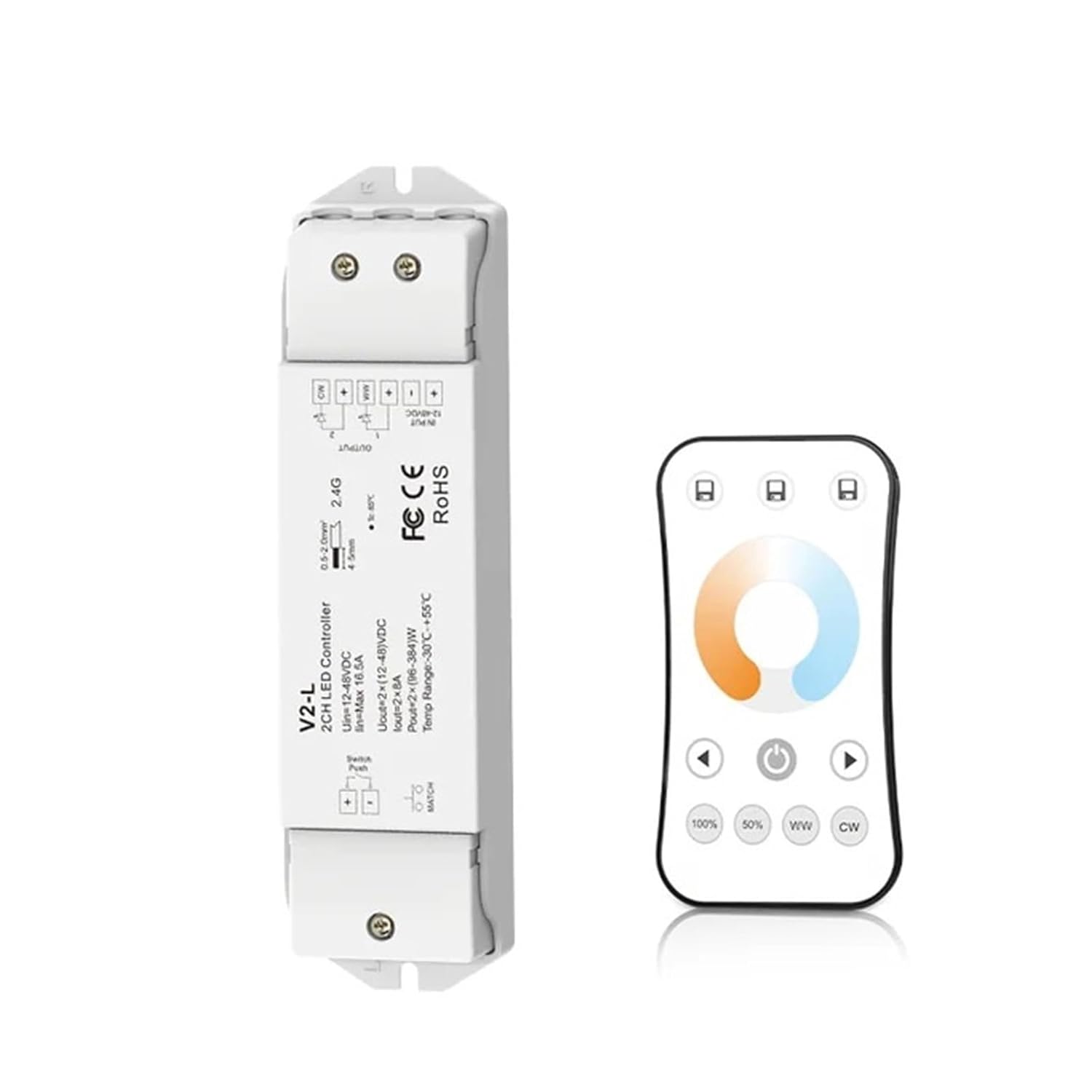

V2-L LED Controller 12-48V 2CH 16A 2.4G Remote Control WW CW LED Dimmer Switch for CCT Dual White LED Light Strip(V2-L only)
Product details
| Management number | 213662243 | Release Date | 2026/04/12 | List Price | $29.90 | Model Number | 213662243 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

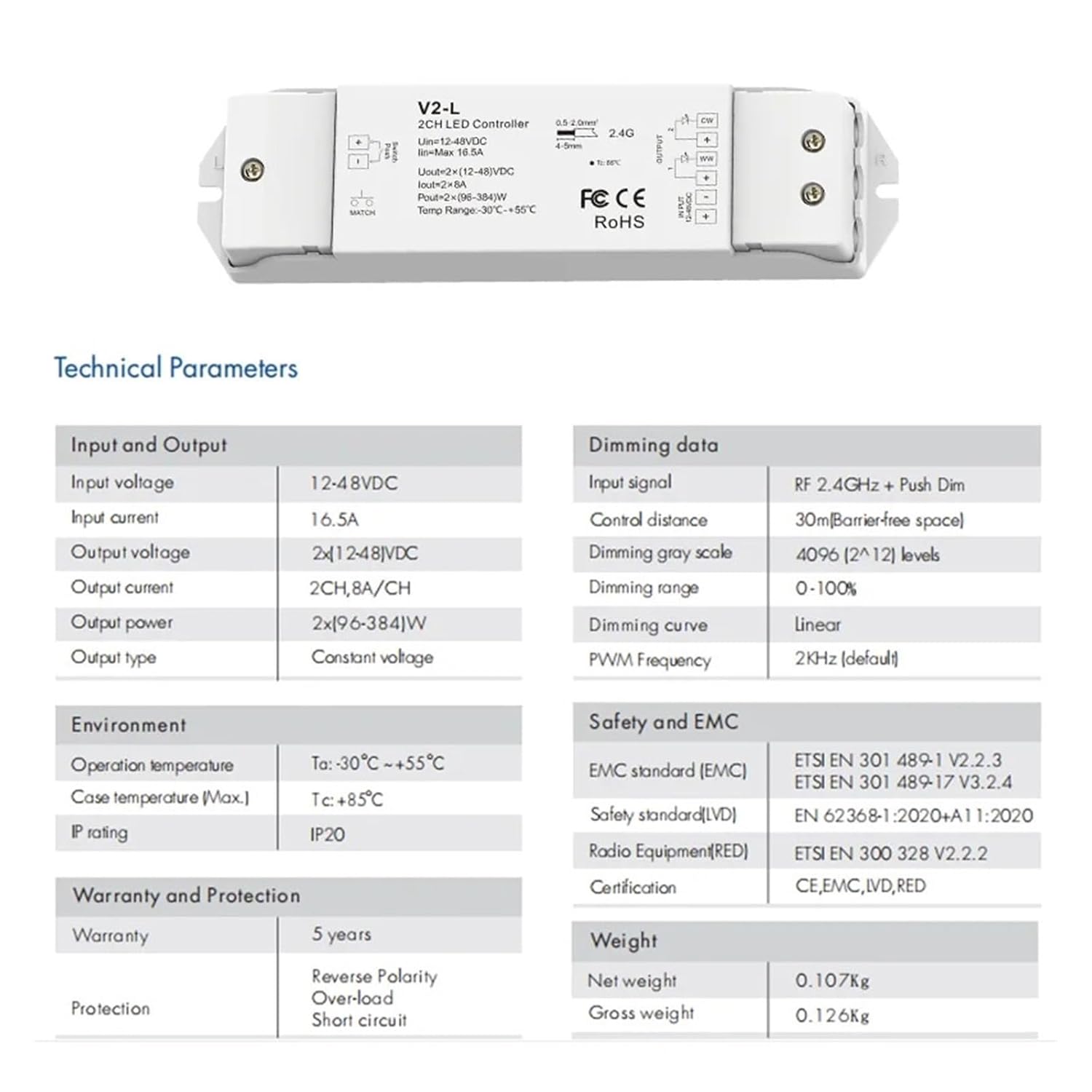

Outlet & Switch CombosV2-L LED Controller 12-48V 2CH 16A 2.4G Remote Control WW CW LED Dimmer Switch for CCT Dual White LED Light Stripfeature4096 levels of 0-100% smooth dimming, no flicker.Matches all 2.4G single zone or multi-zone dual color or single color remote controls.Up to 10 remote controls can be connected to one controller.Automatic transmission function: The controller automatically transmits signals to another controller with a control distance of 30m.Synchronize across multiple controllers.Fade effect is optional.3 levels of color temperature (WW, NW and CW) are selectable through sequential power off and on operation.Connect an external push button switch to achieve on/off and 0-100% dimming functions.Overload/short circuit protection, automatic recoveryModel: V2-LCertification: CE, EMC, LVD, ROHSMaterial: plasticPower supply: DCRemote control distance: 30m (barrier-free space)Origin: Mainland ChinaProduct Type: RGB ControllerInput voltage: 12-48VDCInput current: 16.5AOutput voltage: 2x(12-48)VDCOutput current: 2CH, 8A/CHOutput power: 2x(96-384)WWorking temperature: Ta: -30℃～+55℃Case temperature (maximum): T c: +85
- Outlet & Switch Combos
| Color | One Color |
|---|---|
| Model | QTIWYXYS |
| Terminal | Blade |
| Brand Name | QTIWYXYS |
| Unit Count | 1.0 Count |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | QTIWYXYS |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 1 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 4.72 x 4.72 x 4.72 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
