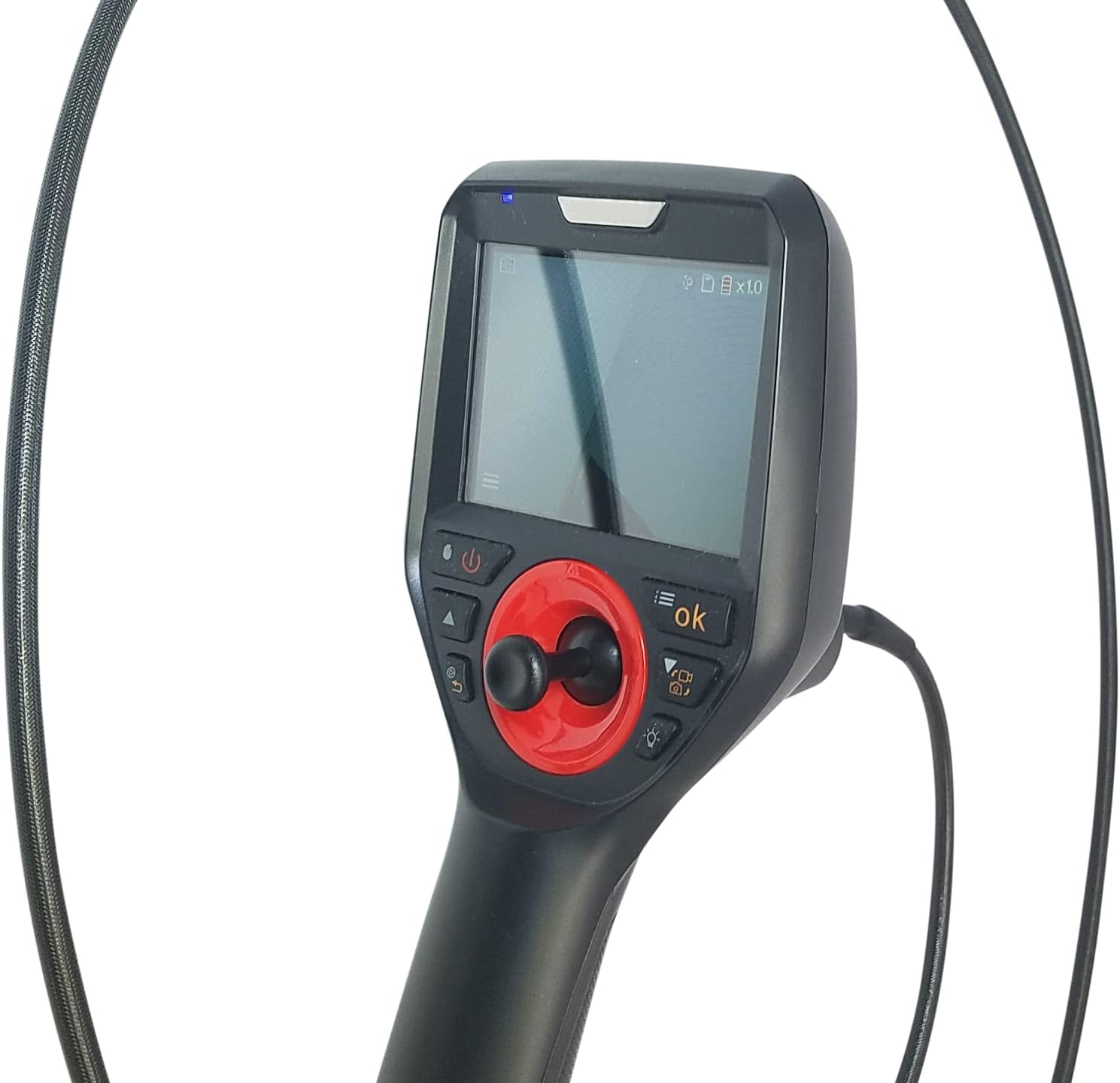

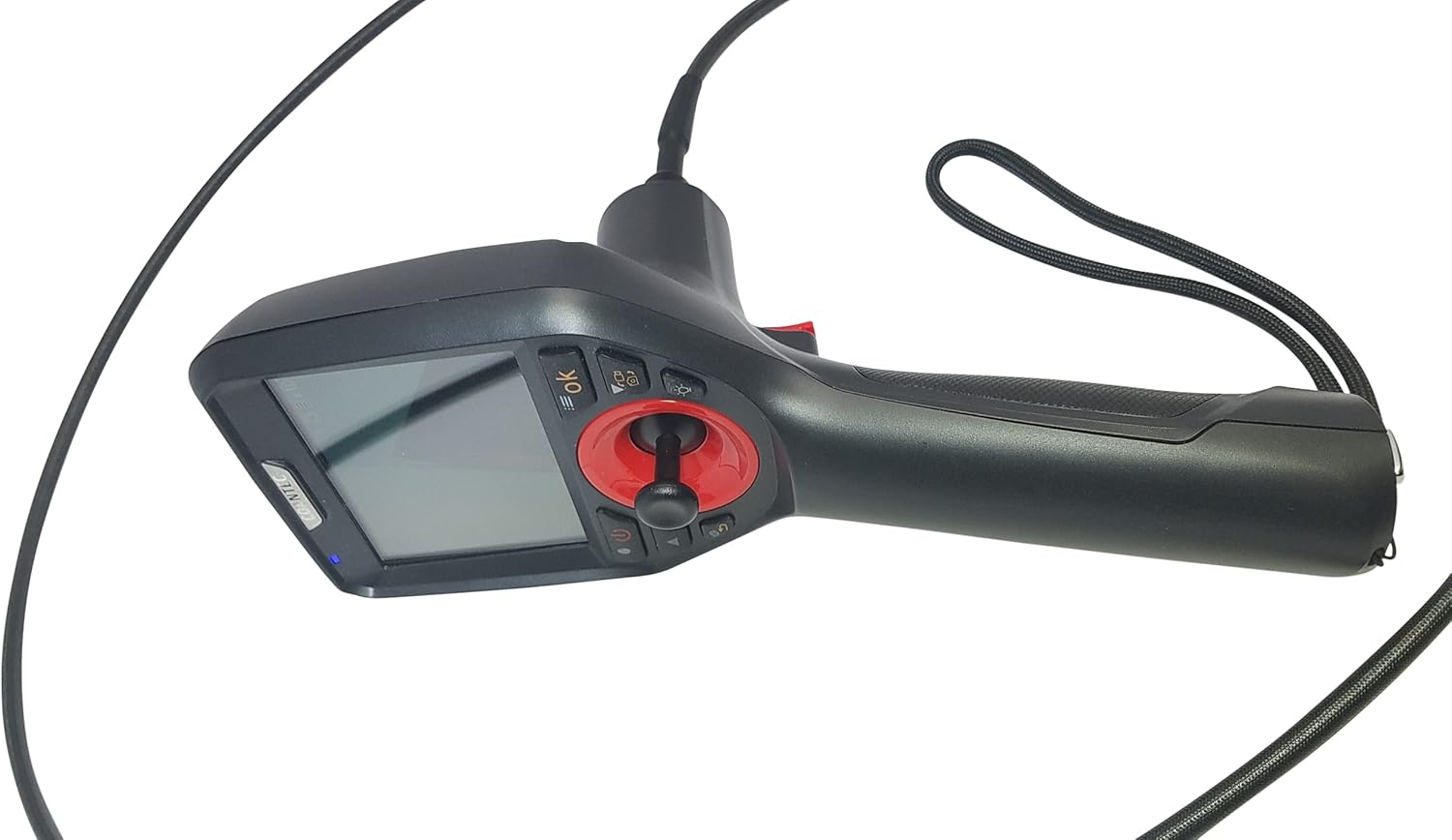

Vividia VC-3815 Industrial Aviation Joystick Articulating Videoscope Borescope Inspection Camera with 3.8mm (0.15") Diameter 1.5m or 3m Long Probe (1.5m Long Probe)
Product details
| Management number | 211158450 | Release Date | 2026/04/04 | List Price | $2,200.00 | Model Number | 211158450 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Vividia VC-3815 Aviation Industrial 1.5 Meter Long Joystick Articulation Borescope Inspection Camera is specially designed for industrial inspection and diagnostics. Vividia VC-3815 has 1.5 meter long, 3.8mm / 0.15" diameter probe with 360° all-way articulation controlled by a joystick. The camera is equipped with sapphire protective lens, which is impact-resistant, fall-resistant, and scratch resistant. The probe tip is made from titanium alloy with high wear resistance, and the probe tube is layers of metal braided mesh tubes. The camera probe and insertion tube is waterproof IP67. Vividia VC-3815 gives high quality clear images with high illuminance LED lights with a resolution of 1280x720. With 8G mini SD card installed on monitor, one can take pictures and record videos with Vividia VC-3815. Vividia VC-3815 is widely used to exam large turbine engines, industrial equipment and pipelines. Insertion Tube Probe Camera (Replaceable): VC-38 has the 3.8mm / 0.15 inch probe Camera Diameter(mm): Φ3.8mm Camera Material: Titanium alloy Camera Pixel: 1MP; 640x480 Depth of Field: 10-100mm Angle of Field: 120° for front view Illumination: 20,000lx at a maximum, adjustable Bending Control: 360° manual omni-directional control Max. Bending Angle: around 150° for 1.5m long probe Insert Tube: Quadruple tungsten-braided tubes Waterproof: Camera/Object glass/Tubes IP67 Monitor: Display: 3.5" TFT LCD Screen Resolution: 720*480 Memory: SD card, Maximum: 32G Data I/O port: Micro-USB port, HDMI Weight: ≤0.55kg（with batteries) Power Supply: Rechargeable lithium battery Battery Capacity: 4.2V 2200mAh Host Working time: >4h
- Vividia VC-3815 Aviation Turbine Industrial Borescope Inspection Camera is specially designed for large turbine and equipment inspection and diagnostics.
- Vividia VC-3815 has 1.5 meter / 4.9 ft long, 3.8mm /0.15" diameter probe with 360° all-way articulation controlled by joystick. The max. bending back angle is around 150 degree.
- The camera is equipped with sapphire protective lens, which is impact-resistant, fall-resistant, and scratch resistant. The resolution is 640x480. There are 6 bright LED lights with 7 levels of brightness.
- The camera tip is made from titanium alloy with high wear resistance. The camera probe and insertion tube is waterproof IP67. The probe tube has layers of metal braided mesh tubes.
- Vividia VC-3815 gives high quality clear images with high illuminance LED lights. With 8G mini SD card installed on monitor, one can take pictures and record video.
| Brand | VIVIDIA |
|---|---|
| Color | black |
| Autofocus | No |
| Zoom Type | Manual Zoom |
| Focus Type | Fixed Focus |
| Media Type | SD Card |
| Model Name | VC 3815 |
| File Format | JPEG |
| Sensor Type | CMOS |
| Camera Flash | Built-In |
| Manufacturer | Vividia Technologies |
| Optical Zoom | 2 x |
| Aperture Modes | automatic |
| Shooting Modes | Manual, Automatic |
| Viewfinder Type | LCD screen |
| Battery Average Life | 4 Hours |
| Maximum Focal Length | 100 Millimeters |
| Video Capture Format | MP4, AVI, MOV |
| Exposure Control Type | Automatic, Program |
| Connectivity Technology | HDMI, USB |
| Focal Length Description | 100 millimeters |
| Video Capture Resolution | 720p |
