Water-cooled spindle motor 3KW ER20 220V 380V Z axis 1333HZ 40000rpm(3.0kw ER20 220V)
Product details
| Management number | 211269464 | Release Date | 2026/04/04 | List Price | $1,131.20 | Model Number | 211269464 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

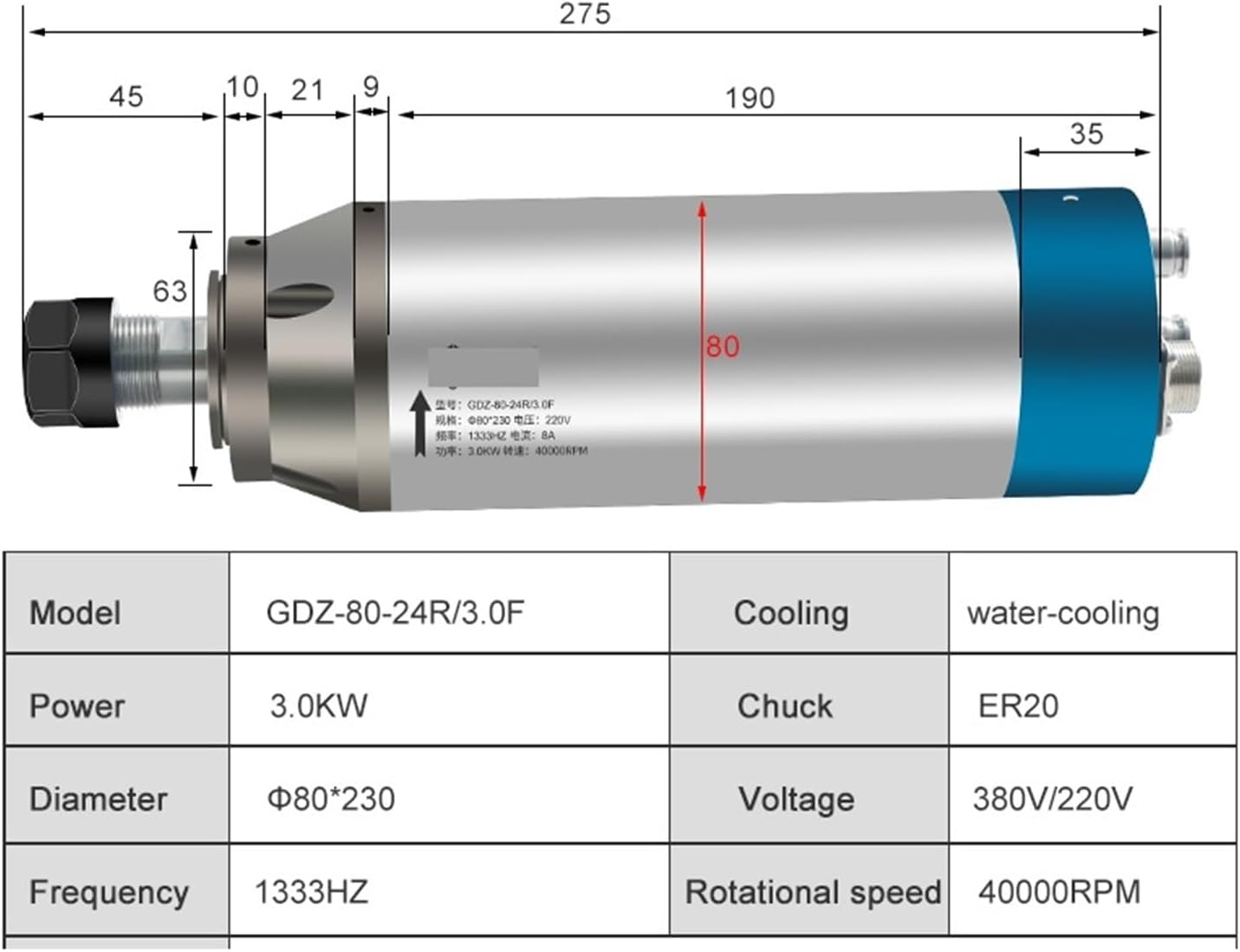

Slotting Cutter ArborsModel: GDZ-80-24R/3.0FMiddle diameter: 80*230Speed regulation mode: Change the spindle speed through the output of the three-phase inverter and adjust the inverter frequency.Cooling method: water coolingPower interface: Optional 4-pin waterproof aviation plug. Connect the aviation plugs marked "1", "2", "3", "4", "1", "2", and "3" to the inverter (U, V, W). Connect the four plugs connected to the inverter to ground the device.Power: 3.0 kWVoltage: 220V 380VCurrent: 8.0AFrequency: 1333HzSpeed: 40000 rpmPulsation: less than 0.01mmBearing type: 4 bearingsCollet nut: ER20
- Slotting Cutter Arbors
| Size | 3.0kw ER20 220V |
|---|---|
| Color | 80x230mm |
| Grit Rating | 1.0 |
| Item Weight | 5.9 ounces |
| Part Number | LKBEJMYY |
| Manufacturer | LKBEJMYY |
| Power Source | ac |
| Item model number | LKBEJMYY |
| Batteries Required | No |
| Package Dimensions | 4.33 x 4.33 x 4.33 inches |
| Item Package Quantity | 1 |
