Wireless HDMI 4 Receivers and Transmitter,4K@30HZ，Up to 4 RX,Extender Plug and Play,820FT,2.4/5.8G Wirelessly Simultaneous Expansion for Suitable from laptops，TVs and Camera,REMOT
$499.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bitbiashara.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$499.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bitbiashara.com
Free 30-day returns Details
Product details
| Management number | 212338151 | Release Date | 2026/04/06 | List Price | $200.00 | Model Number | 212338151 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

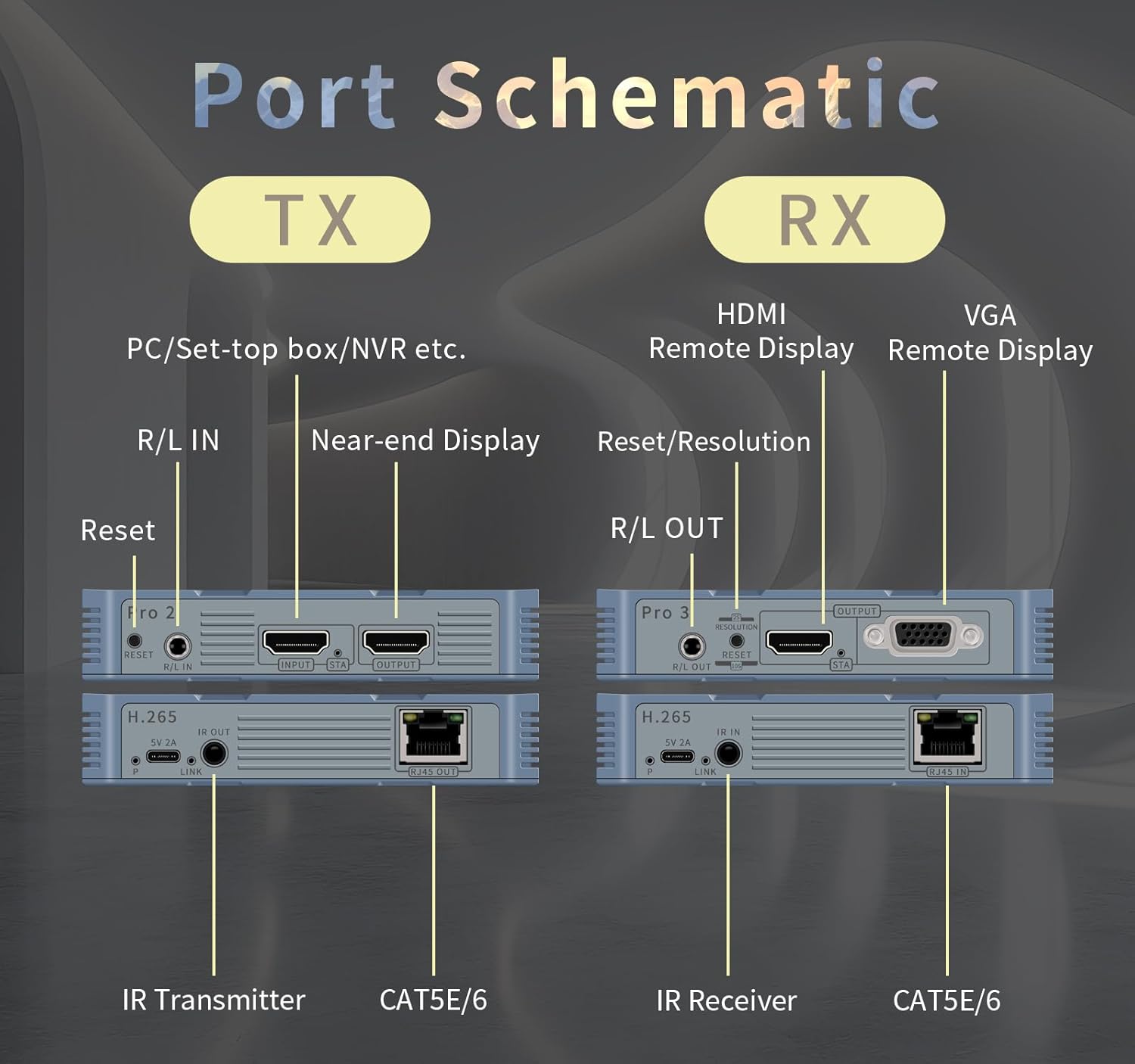

- 【Pro 4K HD+Local Loopout+IR+audio Transmitter and Receiver】 4K transmitter and receiver supports both wireless and network cable transmission. This 1TX and 4RX set enables 1 HDMI source to be synchronized to 4 RX via wireless transmission, suitable for use in open environments up to 820FT or multiple different rooms indoors. It supports up to 4K@30HZ, and also supports 2560*1440@60HZ/1920*1200@60HZ/1920*1080@60HZ/1600*1200@60HZ/720P@60HZ, etc. The TX comes with an HDMI OUT port to connect to a local monitor. It also supports remote 30kHz-60kHz widescreen IR control and embedded audio input and output, and can be connected to independent audio signal sources and audio players.
- 【Wireless use environment】 The distance labeled for wireless transmitter and receiver is usually the maximum distance when there is no obstruction in a horizontal plane, and the specific use is subject to the use environment, we recommend using it in the same space or in adjacent rooms on the same floor, The 1TX and 4RX can be used in multiple rooms on the same floor. However, they cannot penetrate iron plates, load-bearing walls, etc., and are not recommended for use in spaces that are closed to each other or between floors.
- 【2 types of transmission: wireless and network cable】The 4K Transmitter and Receiver support both wireless and network cable transmission. For wireless transmission, it is recommended to connect up to 4 RXs to one TX, and if you are limited by the environment or need to connect more RXs, you can use the network cable to transmit. If you use network switch, you can theoretically connect up to 253 RXs to one TX at the same time, and you can also connect to a LAN for transmission, which only occupies about 10M bandwidth.4K transmitter and receiver also support connecting to a high power wireless bridge repeater, to realize wireless transmitting across floors or ultra-long distance transmitting
- 【RESET ADJUST RESOLUTION 】Press and hold the receiver's RESET button for 2 seconds to cycle through the three resolutions the receiver displays: 4K@30HZ/1080P@60HZ/720P@60HZ, adapting to different monitors. When a transmitter is connected to multiple receivers, each receiver can be adjusted to display a different resolution. Note: Long press for 10 seconds or more, the wireless transmitter receiver will cancel pairing, please pay attention to the operation.

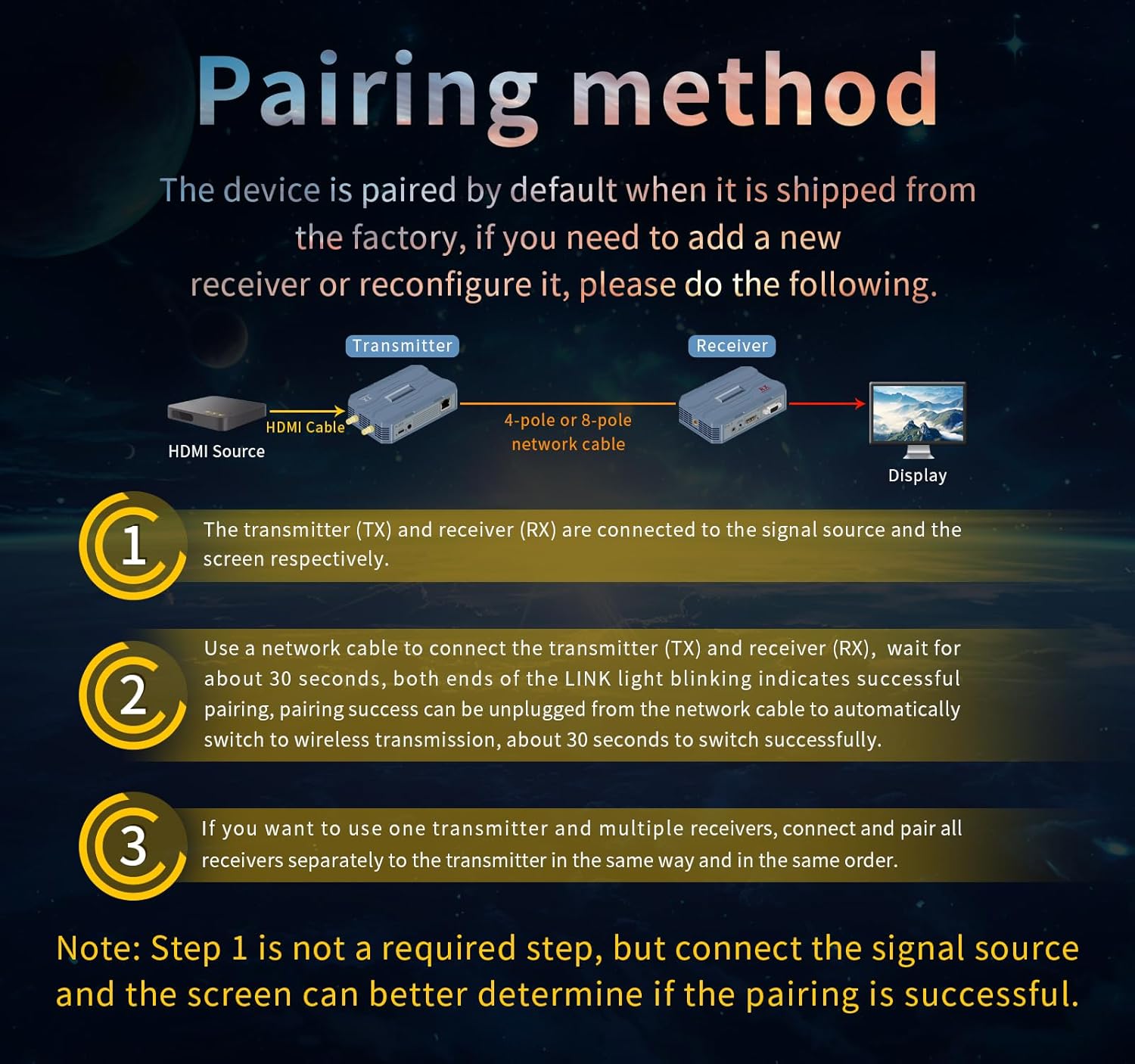

- 【Simple Pairing】 kits are paired successfully by factory default. To operate the pairing, you only need to plug in the power supply and signal source of the transmitter and receiver respectively, use a network cable to connect the transmitter and receiver and wait for about 30 seconds, when the LINK of the transmitter and receiver blinks, it indicates that the pairing is successful, and then unplug the network cable and wait for about 30 seconds again to switch to wireless transmission automatically. This pairing method solves the problem of easy failure of key pairing. The package comes with a 1 meter cable for pairing, or you can use other cables (not larger than 492FT).
| Brand | newiedkvm |
|---|---|
| Color | gray |
| Format | 4K |
| Wattage | 10.0 |
| Item Weight | 2.4 Pounds |
| Manufacturer | newiedkvm |
| Model Number | 4K 1TX to 4RX |
| Output Power | 10 Watts |
| BuiltIn Media | 4K TX transmitter*1；4K RX receiver*4；IR cable TX*1；IR cable RX*4；Dual-band antenna*10；USB charger*5；typec power cable*5；manual*1；3.3FT network cable*1 ; 3.3FT HDMI cable*1 ; USB flash disk*1 (connecting video)。 |
| Connector Type | 3.5mm Jack, HDMI |
| Control Method | Push Button |
| Video Encoding | H.264, H.265/HEVC |
| Controller Type | HDMI,VGA,3.5mm audio,RJ45，IR，mast |
| Audio Output Mode | Stereo |
| Audio Output Type | Speakers via 3.5mm audio jack, Speakers via HDMI |
| Compatible Devices | Set-top boxes, projectors, laptops, personal computers, cameras, TV monitors, speakers |
| Number of Channels | 4 |
| Wireless Technology | 2.4G/5G/5.8GWirelessTransmitters Wifi |
| Warranty Description | 1 year |
| Connectivity Technology | 2.4G/5G/5.8GWirelessTransmitters Wifi，Ethernet connection，HDMI,VGA,IR,Audio,Microphone |
| Item Dimensions D x W x H | 4.8"D x 3.1"W x 1"H |
| Total Number of HDMI Ports | 2 |
| Surround Sound Channel Configuration | 5.1 |
| Other Special Features of the Product | 4K@30HZ HD, 1 transmitter and 4 receivers, local loop，built-in 2.4G/5.8G dual-frequency WIFI transmission, network cable transmission, connecting speakers, HDMI VGA simultaneous output, 1/4 camera nut |
