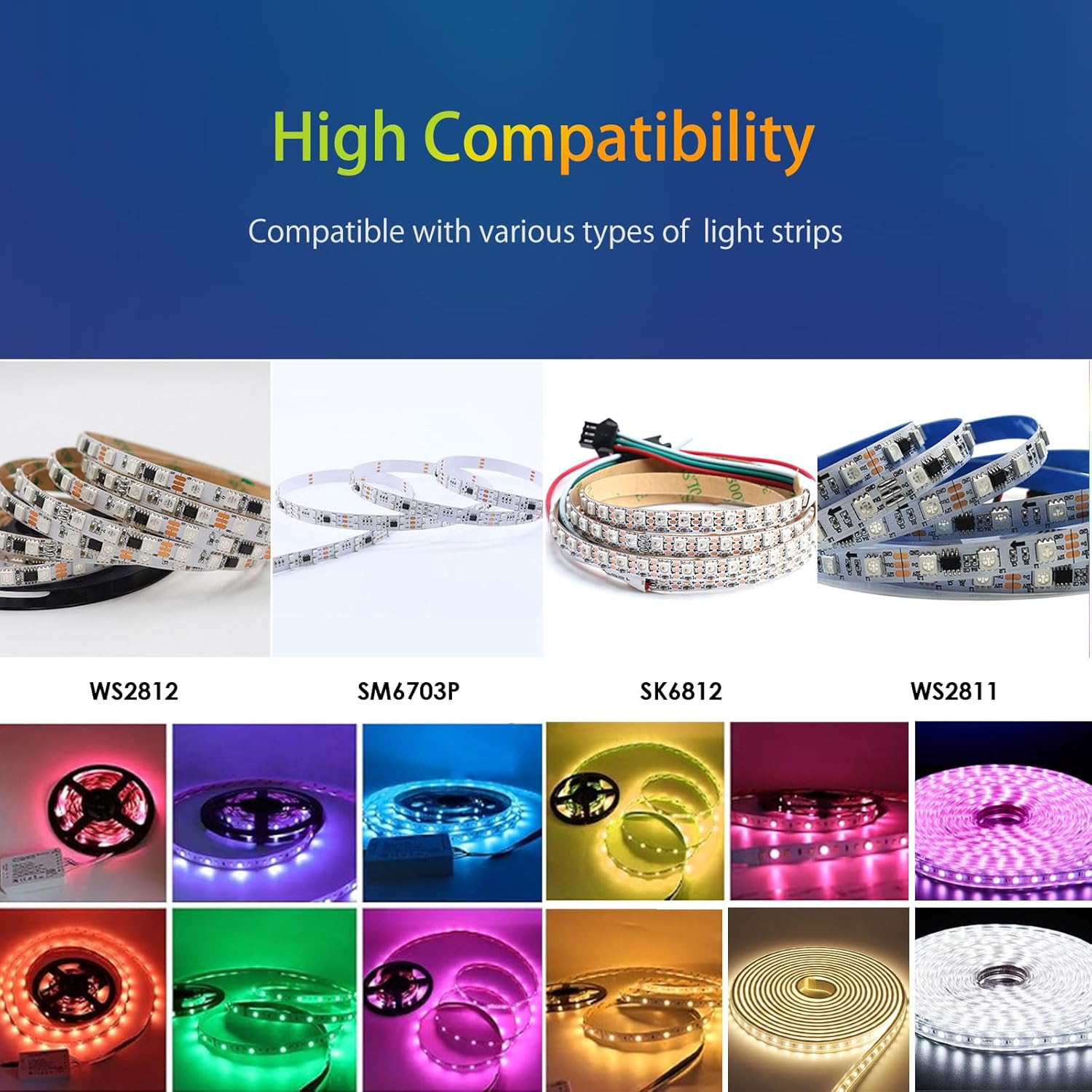

WLED LED Light Strip Controller ESP32 with Mic Download, Addressable LED Controller RGB RGBW WS2812B SK6812 WS2811 TM1814 WS2813 WS2815 5-24V DIY
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bitbiashara.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bitbiashara.com
Free 30-day returns Details
Product details
| Management number | 213851040 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213851040 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 💡Open Source Software : There are many ways to use your mobile phone to remotely control and manage ESP32 boards. Currently the best option, hands down, is WLED. A fully Open-Source phone application, WLED can be found for free in the Google Play Store or in the IOS App Store. So no matter your Phone type you can get in on the action. With the ESP32 board connected together, this application will allow you to control the LED lights exactly how you want.
- 💡Fully Addressable LED strips : Fully Addressable LED strips can produce whatever unique colour and brightness you want for each LED node. This provides an incredible amount of freedom. Creating a great Fully Addressable LED control system used to be complex, either having to start from scratch (coming up with light patterns and user interface) or taking the easier option and having to then use paid proprietary options (which have limited built-in patterns).
- 💡Macros：You are able to set custom actions ("Macros") in Time & Macro settings for the following events: ⊚Specific time of day；⊚Button short/long/double press；⊚HTTP API call executing a macro with &M=；⊚Alexa On/Off；⊚Countdown over；⊚Timed light duration over；⊚Device (re)boot (up to 0.10.2, use LED settings Boot preset in 0.11)；Each macro has the format of a standard HTTP API call without the IP. Optionally, the "win&" may be omitted. For example, the macro "A=255" sets the brightness to maximum
- 💡Auto white handling：Besides addressable RGB and RGBW bus types, WLED 0.13.0 also supports PWM CCT (correlated color temperature) lights.Many effects and realtime sources are based on an RGB color model, which necessitates a method to calculate a white channel value from the RGB value for lights that support more than RGB.WLED offers four auto white modes, one of which can be selected in LED settings using the option Auto-calculate white channel from RGB.
- 💡Freely collocatable for greater flexibility：GL-C-010WL WLED Addressable Strip Controller allows you to set different zones on the LED strip, each running a different effect or color，To illustrate this, we can create a segment with 12 LEDS (physically referred to as LED 0 to LED 11) and select an effect that repeats three colors. When Grouping is set to one we see a repeating pattern of one red LED, one blue LED, and one green LED.
- 💡Welcome to my project WLED! ✨：GL-C-010WL WLED Addressable Strip Controller library integrated for over 100 special effects;FastLED noise effects and 50 palettes;Modern UI with color, effect and segment controls;Segments to set different effects and colors to parts of the LEDs;Settings page - configuration over network;Access Point and station mode - automatic failsafe AP;Up to 3 LED outputs per ESP32 instance and 10 LED outputs per ESP32 instance Support for RGBW strips.
| Color | WLED Controller ESP32 with Mic and Download |
|---|---|
| Theme | Game, Home, Office |
| Wattage | 1 watts |
| Occasion | Game |
| Brand Name | Ericsity |
| Unit Count | 1.0 Count |
| Light Color | Multicolor |
| Manufacturer | Ericsity |
| Model Number | GL-C-010WL-D |
| Power Source | DC |
| Product Style | Modern |
| Control Method | App |
| Controller Type | App Control |
| Number of Items | 1 |
| Light Source Type | LED |
| Additional Features | Corded |
| Indoor Outdoor Usage | Indoor |
| Connectivity Protocol | Wi-Fi |
| Water Resistance Level | Not Water Resistant |
| Number of Light Sources | 1 |
| Wireless Communication Technology | Wi-Fi |
