YERTAI 200W Signal Channel Electronic Load Tester 200W,0-180v 0-30A Battery Tester.Switching Power Supply,Linear Power Supply USB Communication,Black Color,ET5407A+
Product details
| Management number | 213672267 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213672267 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

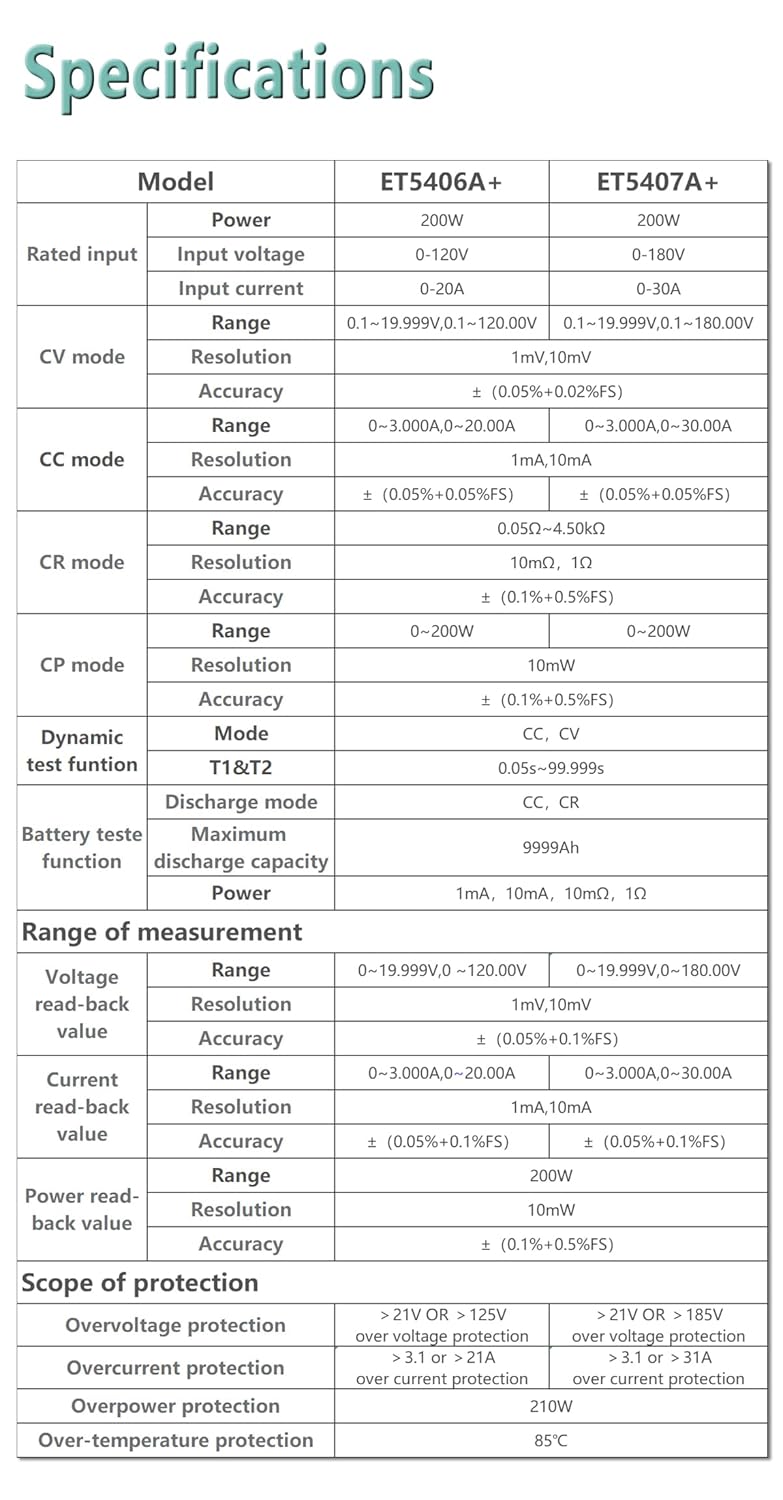

ET5407A+ electronic load tester Rated inputPower 200W Input voltage 0-180V Input current 0-30Aelectronic load tester CV modeRange:0.1~19.999V,0.1~18 0.00V Resolution:1mV,10mV Accuracy ±（0.05%+0.02%FS）electronic load tester CC modeRange:0~3.000A,0~3 0.00A Resolution:1mA,10mA Accuracy ±（0.05%+0.05%FS）electronic load tester CR modeRange:0.05Ω~4.50kΩ Resolution:10mΩ，1Ω Accuracy ±±（0.1%+0.5%FS）electronic load tester CP modeRange:0~2 00W ， Resolution:10mW Accuracy ±（0.1%+0.5%FS）Battery Tester discharge mode :CC CRMaximum discharge capacity :9999AhResolution 1mA,10mA ,10mΩ，1Ω
- ET5407A+ electronic load tester Rated input Power 200W Input voltage 0-180V Input current 0-30A
- can be widely used in production line testing in chargers, switching power supplies, linear power supplies, batteries and other industries.
- Provide basic measurement modes of CC, CV, CR and CP
- overvoltage, overcurrent, overpower and overtemperature protection functions, overvoltage and overcurrent parameters can be flexibly set to effectively protect the load;
| UPC | 762283871172 |
|---|---|
| Color | black |
| Model | ET5407A+ |
| Brand Name | YERTAI |
| Style Name | DC LOAD |
| Item Weight | 3 Kilograms |
| Manufacturer | YERTAI |
| Power Source | Battery Powered |
| Measurement Type | Voltmeter, Ammeter, Ohmmeter |
| Specification Met | ETL |
| Included Components | user manual |
| Minimum Operating Voltage | 0.1 Volts |
